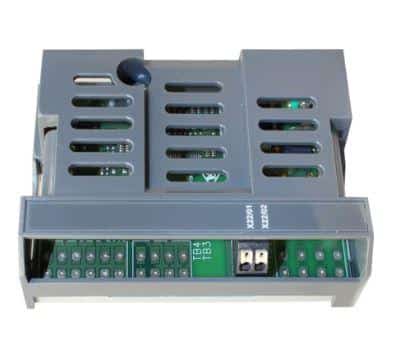

Parker 70040500 Resolver Feedback Module
Parker 70040500 Resolver Feedback Module
Product Description :
- A resolver is a type of rotary position sensor that works on the principle of electromagnetic induction. It consists of a rotor and a stator, and as the rotor rotates, it induces an electrical signal in the stator windings.
- The amplitude and phase of this induced signal change with the rotor’s angular position, allowing for precise measurement of angle or speed.
- The Parker 70040500 Resolver Feedback Module is a precision electrical feedback device designed to provide accurate rotor position and speed sensing in industrial automation, motion control, and servo drive applications.
- This Parker resolver feedback module delivers high-resolution, reliable performance for Parker motion systems, servo motors, and automated machinery, ensuring precise control and smooth operation.
- Engineered with robust construction and high-quality components, the Parker 70040500 Resolver Feedback Module ensures long-term reliability, vibration resistance, and consistent signal accuracy even in harsh industrial environments.
- It integrates seamlessly with Parker drives, servo amplifiers, and control systems, making it a critical component for motion feedback, encoder replacement, and rotational position sensing.
Product Specification :
- Resolver Feedback Module for AC30 series Frequency Inverters
- Maximum Speed: 70,000 rpm @ 12-bits
- Carrier Output Signal: 4-12V rms, 2 kHz – 20 kHz
- Maximum Carrier Supply: 70mA rms
- Maximum Input Voltage: ±24V pk differential
- Accuracy: <±10 arc min
- Resolution: 12-16 bits
- Inputs: Differential inputs Zin ~ 2.4 kΩ
- Isolation: Not isolated
