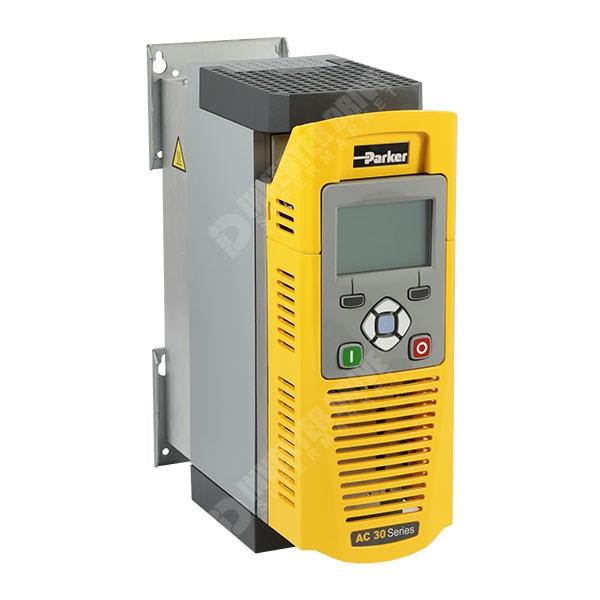

Parker AC30P 1.5kW/2.2KW Inverter
Parker AC30P 1.5kW/2.2kW Inverter
Product Description :
- Parker AC30V AC Frequency Inverter for 1.5kW (2HP) 400V 3 Ph motor to 4.5A at high overload or 2.2kW (3HP) to 5.5A when Fan/Pump rated, operates in VxF, Sensorless Flux Vector or Full Closed Loop Flux Vector control (when the optional encoder board is fitted). Simple set-up and ready to run in VxF from its default settings.
- The Parker AC30P 1.5kW/2.2kW Inverter supports flexible motor control with advanced vector and V/Hz control modes, ensuring stable performance even under varying load conditions.
- Its intelligent design allows accurate speed control, reduced mechanical stress, and optimized energy consumption, making it a cost-effective solution for modern industrial automation systems.
- Built for durability and ease of use, the Parker AC30P 1.5kW/2.2kW Inverter features a user-friendly interface, compact footprint, and straightforward installation.
- It is well suited for applications such as pumps, fans, conveyors, compressors, mixers, and general-purpose industrial equipment. The inverter helps extend motor life by minimizing inrush current, reducing overheating, and providing smooth acceleration and deceleration.
Product Specification :
- Size D – 100mm Wide x 255mm Deep x 286mm High overall. IP20
- Overload – 150% x 60 seconds and 180% for 3.0seconds.
- Speed Control Range – 0/500Hz (default), 0/1000Hz or 0/1500Hz
- Switching Frequency 4 to 16kHz.(Derating may apply)
- Braking (DBr) – Maximum of 20 seconds at maximum current @ a duty 30% into minimum 260 Ohm external resistor – See the Resistor options linked below or use the ‘Which Resistor’ button on this page
- 2 x Analogue Inputs, 3 Digital Inputs,4 Programmable Digital I/O, 2 Analogue outputs, 2 Digital outputs (relay contacts).
- Input Current –5.3A at high overload or 7.6A when Fan/Pump rating set.
- Input Voltage – 380/480V three phase +-10% at 50/60Hz.
- Input fuse – 10A when Fan/Pump rating set
