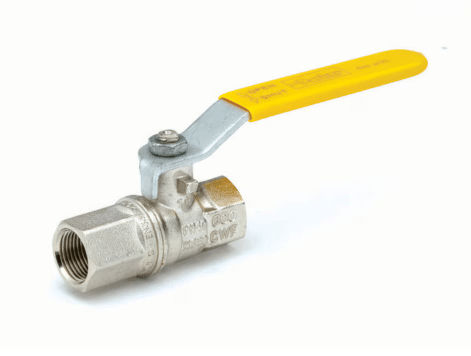

Parker BVG434C Ball Valve
Parker BVG434C Ball Valve
Product Description :
- It is a type of valve that uses a spherical disc (the ball) to control the flow of fluid through a pipe.
- The valve consists of a ball with a hole (or port) through the middle, mounted in a housing. When the ball is rotated, the hole aligns with the flow path to allow fluid to pass or is turned perpendicular to block the flow.
- Typically operated manually with a lever or automatically with an actuator.
Product Specification :
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Maximum Operating Temperature: | 338 °F, 170 °C |
| Maximum Operating Pressure: | 40 bar, 580 psi |
| Locking Mechanism: | Non-Locking |
| Connection Type: | BSPP |
| Body Material: | Nickel-Plated Brass |
| Ball Material: | Chrome-Plated Brass |
| Seat Material: | PTFE |
| Shape: | Inline |
| Vented: | No |
| Thread Size: | BSPP |
