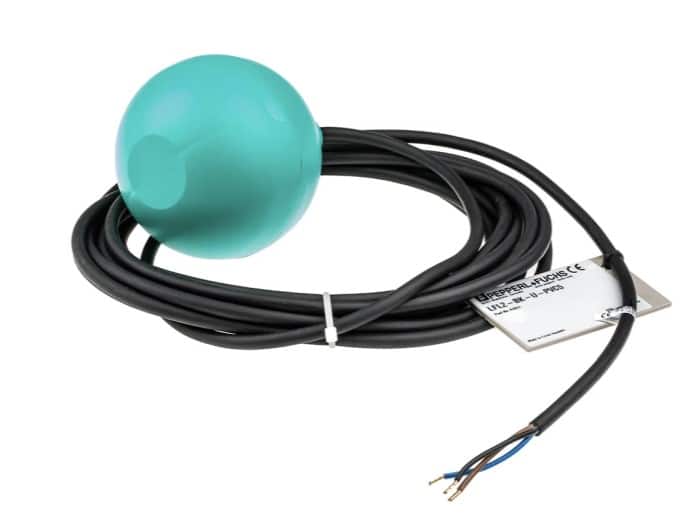

Pepperl+Fuchs LFL2-BK-U-PVC5 Float Switch
Pepperl+Fuchs LFL2-BK-U-PVC5 Float Switch
- It is a type of sensor used to detect the level of a liquid within a tank or vessel. It consists of a buoyant float attached to a lever or arm mechanism, which moves in response to changes in liquid level. The movement of the float actuates a switch, signaling the presence or absence of liquid at a certain level. They are commonly used in various applications for liquid level control, monitoring, and automation.
Product Specification:
| Device Type | Float |
| Mounting Type | Horizontal |
| Switch Output | Direct Load |
| Body Material | Polypropylene |
| Cable Length | 5m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Maximum Current | 1 A dc, 3 A ac |
| Maximum Pressure | 2bar |
