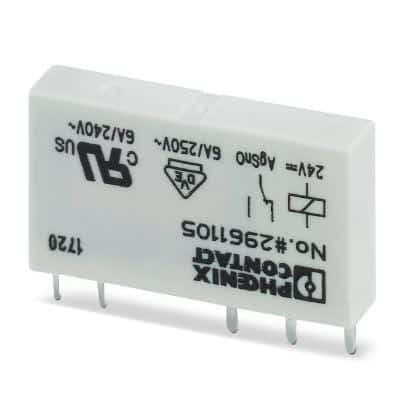

Phoenix Contact 2961105 Single Relay
Phoenix Contact 2961105 Single Relay
Product Description:
- A Single Relay is a basic electromechanical switch that uses an electromagnet to control a single circuit. It is typically used for switching a single electrical load on or off using a low-power control signal.
- It is a simple and versatile device that plays a crucial role in various applications, allowing low-power control signals to switch higher-power loads.
- They are a fundamental component for controlling electrical loads and signals in many electrical and electronic systems.
- When a small control voltage is applied to the relay coil, it generates a magnetic field.
- This magnetic field pulls a movable contact to either open or close the circuit.
- When the control voltage is removed, the contact returns to its default position (normally open or normally closed).
- The Phoenix Contact 2961105 Single Relay is a high-quality industrial relay designed for reliable switching and signal control in automation and control systems. This single relay ensures precise operation, long service life, and robust performance in demanding industrial environments.
- Engineered by Phoenix Contact, the 2961105 Single Relay offers high switching capacity, low power consumption, and fast response times, making it ideal for PLC systems, control panels, industrial automation, and electronic circuit protection. Its compact design allows easy integration into DIN rail mounting applications, optimizing space in control cabinets.
Product Specification:
| Coil side | |
| Nominal input voltage UN | 24 VÂ DC |
| Input voltage range | 14.4 VÂ DC … 66 VÂ DC |
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 7 mA |
| Typical response time | 5 ms |
| Typical release time | 2.5 ms |
| Coil resistance | 3390 Ω ±10 % (at 20 °C) |
