Phoenix Contact 2966618 Solid State Relay
Phoenix Contact 2966618 Solid State Relay
Product Description:
- A miniature solid-state relay is a compact, electronic switching device used to control high-power electrical circuits with a low-power control signal, without the need for mechanical contacts.
- Unlike traditional electromechanical relays, solid-state relays use semiconductor components (such as thyristor or MOSFETs) to perform switching operations, offering faster, quieter, and more reliable performance.
-

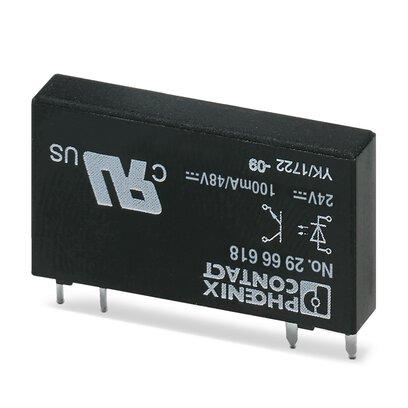

The Phoenix Contact 2966618 Solid State Relay is a high-performance electronic switching device designed for reliable, silent, and fast switching in industrial automation and control applications.
-
The Phoenix Contact 2966618 Solid State Relay provides superior durability compared to electromechanical relays, as it operates without moving parts, ensuring long service life and maintenance-free operation.
-
Engineered with advanced solid-state technology, the Phoenix Contact 2966618 Solid State Relay offers high switching accuracy, fast response time, and excellent resistance to vibration and shock.
-
This makes the Phoenix Contact 2966618 Solid State Relay ideal for use in PLC systems, control panels, automation systems, industrial machinery, and power distribution units.
-
The Phoenix Contact 2966618 Solid State Relay is designed to handle demanding industrial environments while maintaining stable output performance and efficient heat dissipation.
-
Its compact design allows easy installation in control cabinets, saving space while delivering consistent and reliable switching performance.
Product Specification:
| Product type | Single solid-state relay |
| Operating mode | 100% operating factor |
| Contact switching type | 1 N/O contact |
| Design of digital output | electronic |
| Output voltage range | 3 VÂ DC … 48 VÂ DC |
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 1 V |
| Output circuit | 2-conductor, floating |
| Nominal input voltage UN | 24 VÂ DC |
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 VÂ DC … 28.8 VÂ DC |
| Switching threshold “0” signal, voltage | ≤ 10 V |
| Switching threshold “1” signal voltage | ≥ 16 V |
| Typical input current at UN | 7 mA |
| Typical response time | 20 µs (at UN) |
| Typical turn-off time | 300 µs (at UN) |
| Transmission frequency | 300 Hz |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.17 W |
| Test voltage (Input/output) | 2.5 kV (50Â Hz, 1Â min., input/output) |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Degree of protection | RT III |
| Ambient temperature (operation) | -25 °C … 60 °C |
| Ambient temperature (storage/transport) | -25 °C … 70 ° |
