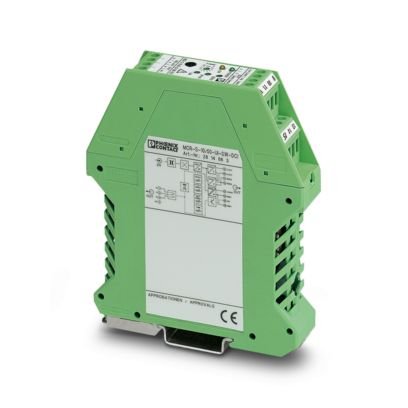

Phoenix Contact MCR-S10-50-UI-SW-DCI-NC Current Transducer
Phoenix Contact MCR-S10-50-UI-SW-DCI-NC Current Transducer
Product Description :
- It is an electronic device that measures electric current (AC or DC) and converts it into a standardized output signal, usually voltage (e.g., 0–5V, 0–10V) or current (e.g., 4–20 mA), for monitoring, control, or data acquisition systems.
- It detects the current flowing through a conductor.The sensed current is converted into a proportional analog or digital signal.
The signal is sent to meters, PLCs, controllers, or data loggers for display, control, or automation.
Product Specification :
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 14 |
| Connection method | Through connection |
| Maximum power dissipation for nominal condition | 2.2 W |
| Measuring category | III |
| Test voltage output/power supply | 500 VÂ AC (50Â Hz, 60Â s) |
| Test voltage input/output | 4 kV AC (50Â Hz, 60Â s) |
| Test voltage input/power supply | 4 kV AC (50Â Hz, 60Â s) |
| Protective circuit | Surge protection; 33Â V suppressor diode |
