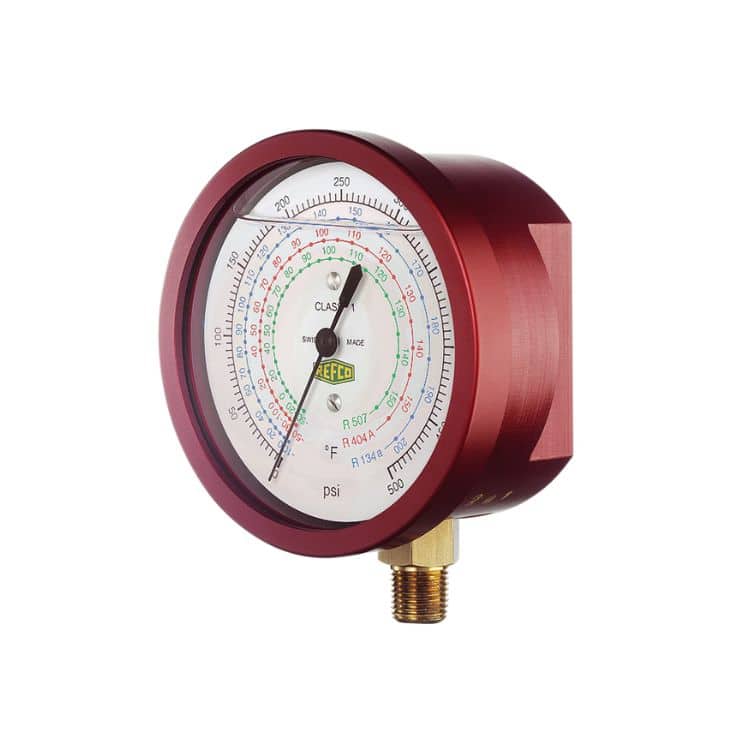

Refco 4662399 Bellow Gauge
Refco 4662399 Bellow Gauge
Product Description :
-
- A bellow gauge is a type of mechanical pressure gauge that uses a bellow (a flexible, expandable metal component) to measure the pressure of a gas or liquid within a system.
- When the pressure inside the system increases or decreases, the bellow expands or contracts, which moves a pointer or activates a dial to indicate the pressure reading on the gauge.
- They are for high demands in a robust aluminum housing with evaporating temperature scales.
- Bellow-type pressure gauges are extremely accurate and extremely safe against overpressure.
- Due to the oil filling, the pressure gauge has reduced pointer vibration for more accurate reading.
- This also results in a significantly extended life time due to the damping effect and lubrication.
-
A bellow gauge is a precision measuring instrument used to detect and indicate pressure, force, or displacement in mechanical and industrial systems. It operates using a flexible bellow that expands or contracts in response to changes in pressure or force, translating movement into readable measurements.
-
Bellow gauges are manufactured from high-quality metals and alloys, designed to withstand high pressure, temperature fluctuations, and harsh industrial environments. They provide accurate, reliable, and repeatable readings, making them ideal for monitoring critical processes.
-
These gauges are widely used in hydraulic and pneumatic systems, process industries, HVAC equipment, and laboratory applications, offering precise measurement, enhanced safety, and system reliability.
Product Specification :
- Bellow Type Gauge
- NS 60, 1/8″ NPT Class 1.0, oilfilled
- Connection: bottom,
- Pressure scale: psi
- High accuracy class 1.0
- Robust aluminium housing
- Zero point adjustment from top of the housing
- Oil-filled for low vibration reading and longer life
- Overpressure protection
