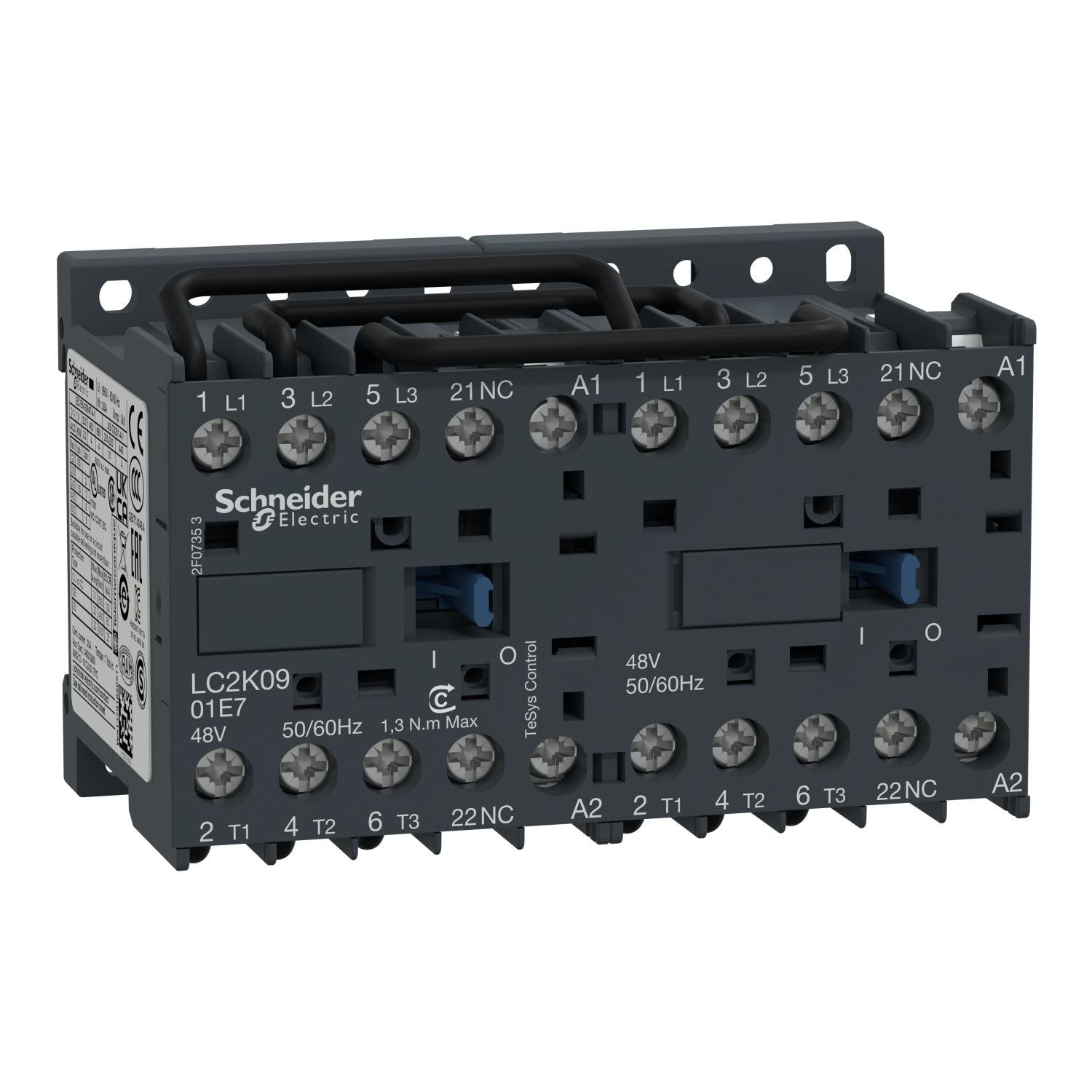

Schneider Electric LC2K0901E7 Reversing Contactor
Schneider Electric LC2K0901E7 Reversing Contactor
- It is an electrical device use to reverse the direction of rotation of an electric motor. A reversing contactor includes two sets of contacts: one for the forward direction and one for the reverse direction. It is an electrical switch that is designed to handle high currents. It consists of a coil, which when energized, generates a magnetic field that pulls together a set of contacts, closing an electrical circuit.
Product Specification :
| Control circuit voltage limits | Operational 0.8…1.15 Uc 122 °F (50 °C)) Drop-out 0.2…0.75 Uc 122 °F (50 °C)) |
|---|---|
| Inrush power in VA | 30 VA 68 °F (20 °C)) |
| Hold-in power consumption in VA | 4.5 VA 68 °F (20 °C)) |
| Heat dissipation | 1.3 W |
| Auxiliary contacts type | Instantaneous 1 NC |
| Signalling circuit frequency | <= 400 Hz |
| Minimum switching current | 5 mA signalling circuit |
| Minimum switching voltage | 17 V signalling circuit |
| Non overlap distance | 0.02 in (0.5 mm) |
| Insulation resistance | > 10 MOhm signalling circuit |
