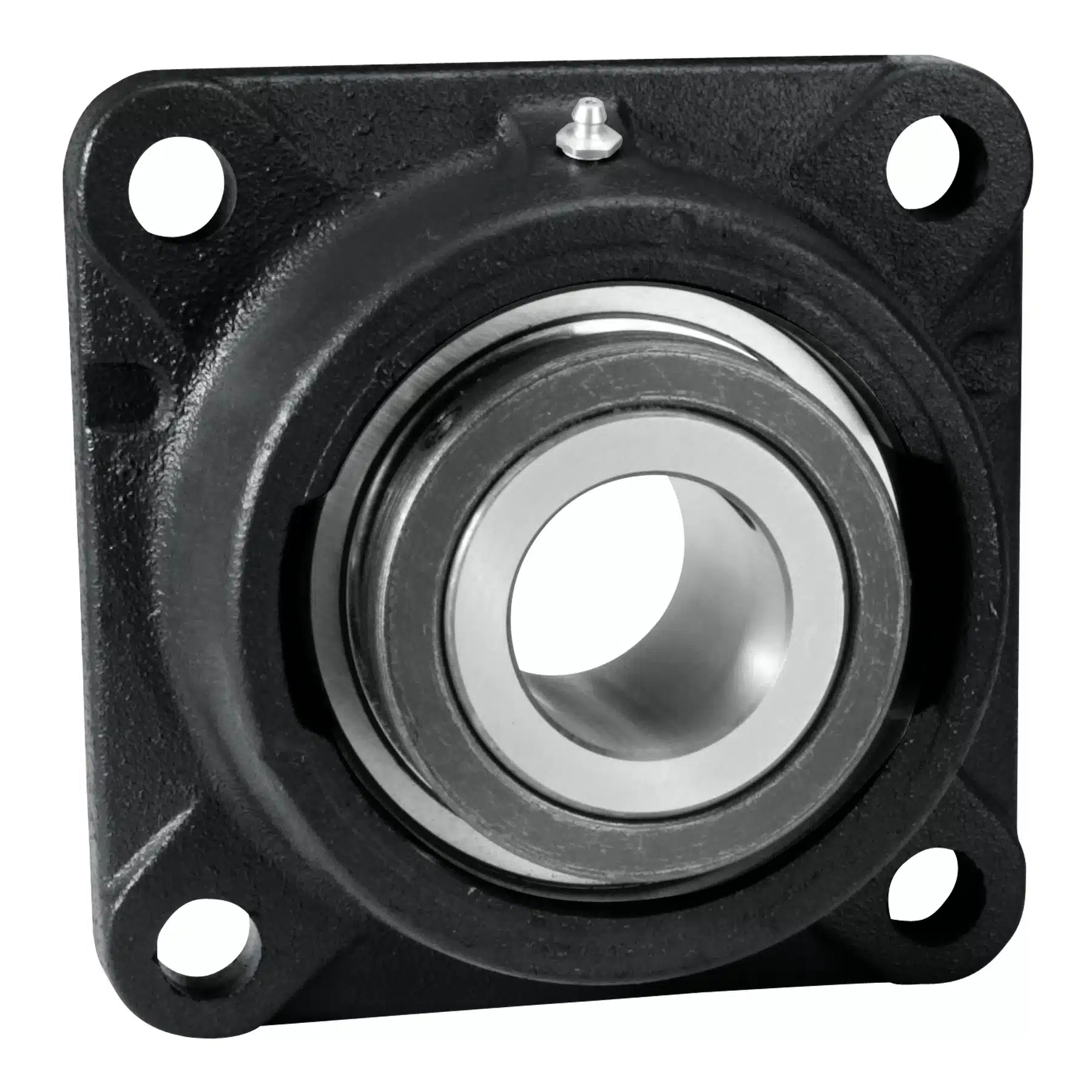

Rexnord FU347N Flange
Rexnord FU347N Flange
Product Description:
- A flange is a mechanical component used to connect two pieces of equipment or piping together, often to create a strong, leak-proof seal.
- Flanges are typically circular, with holes around the perimeter for bolts to securely fasten the components.
- Flanges are widely used in piping, plumbing, and mechanical systems where two parts need to be joined or disconnected for maintenance or repair.
- A flange is a protruding rim, edge, collar, or flat, circular disc with evenly spaced holes that is used to connect and join two or more pipes, valves, or other equipment in a piping system.
- Flanges serve several important functions in various industries, particularly in the field of fluid and gas handling.
- Flanges are an integral part of modern industrial and commercial piping systems, and their selection and proper installation are crucial for the safe and reliable operation of these systems.
- They play a key role in ensuring leak-free connections, ease of maintenance, and adaptability in fluid handling applications.
Product Specification:
- Retainer Type: NYLON
- Available End Cap:U3476C
- Bearing Brand: LINK-BELT 300 SERIES HD BALL
- Bearing Housing: FLG BLK 4 BLT SQ 300 SERIES
- Bearing Housing Material: CAST IRON
- Bearing Type: HEAVY DUTY BALL BRG
- C Dynamic Load Rating:26140 lb
- Co Static Load Rating:17300 lb
- Fixed Expansion: FIXED
- Grease Fitting Size:1/8 NPT
- Housing Coating: POWDER COATED
- Insert:UG347NL
- Locking Device Kit:U3475S
- Lubrication Type: EXXON RONEX MP STD
- Maximum Speed:2650 rpm
- Mounted Clearance:C3 STANDARD
- Net Weight:33.86
- Primary Seal: BUNA DBL LIP SEAL WITH FLGRS
- Service Instructions:BR3-007 LB 200 BALL-300 BALL
- Shaft Locking: SINGLE SET COLLAR
- Size Code:347
- Vibration Frequency Fundamental Train:0.0065 cps
- Vibration Frequency Inner Ring Defect:0.0820 cps
- Vibration Frequency Outer Ring Defect:0.0513 cps
- Vibration Frequency Roller Spin:0.0343 cps
