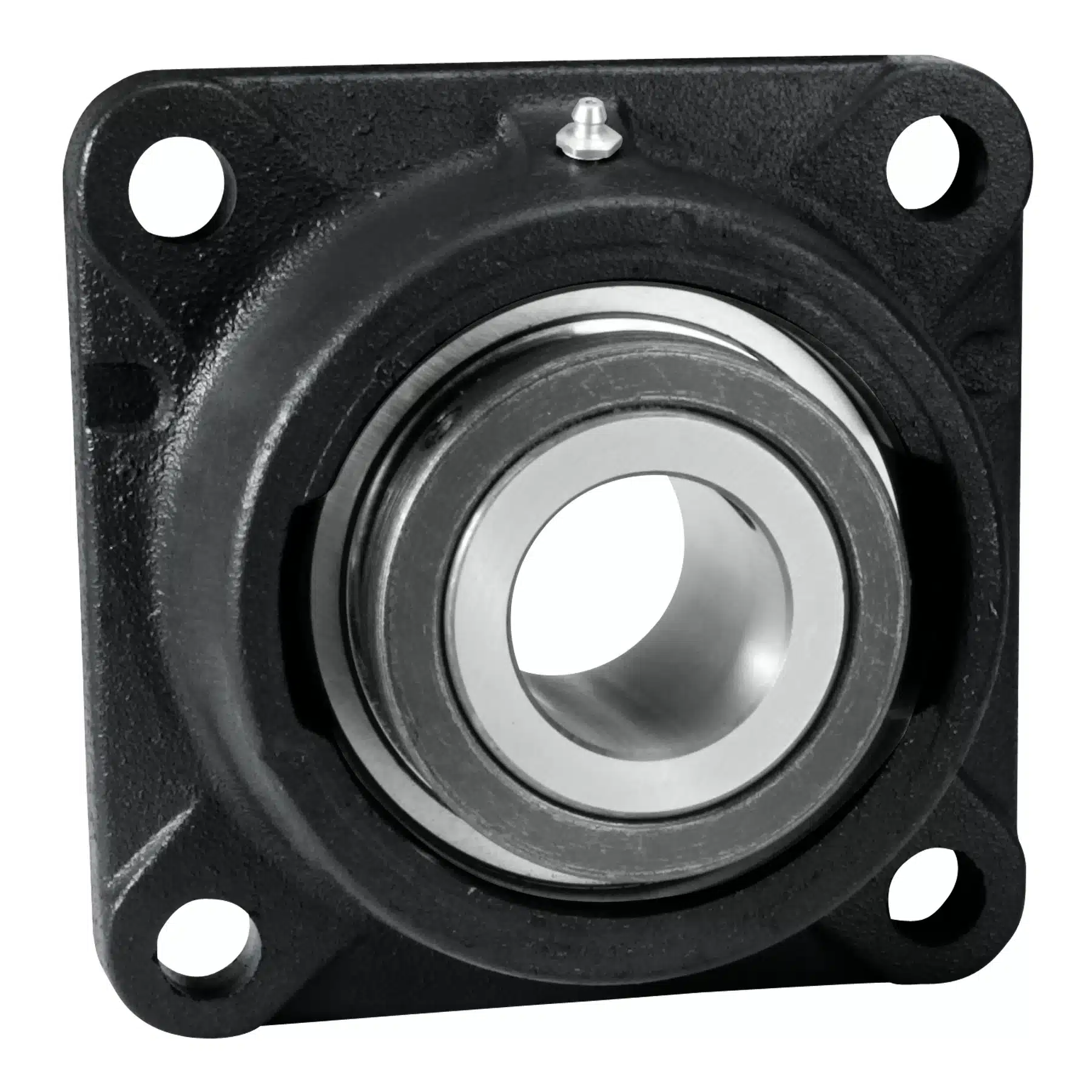

Rexnord FU347N Flange Blocks Ball Bearings
Rexnord FU347N Flange Blocks Ball Bearings
Product Description:
- It is a type of rolling-element bearing that is design to be mounted in a housing with a flange for added support and stability. These bearings are commonly use in various industrial and mechanical applications to support rotating shafts while providing a fixed mounting point with the help of the flange.
- The Rexnord FU347N Flange Blocks Ball Bearing is a high-performance bearing unit designed for industrial machinery, conveyors, and heavy-duty equipment. This flange block bearing combines the reliability of a Rexnord bearing with the stability and durability of a mounting flange, ensuring smooth operation, precise alignment, and long service life.
- The FU347N Flange Block Ball Bearing is engineered with high-strength steel components, precision ball bearings, and corrosion-resistant housings, making it ideal for harsh environments, high-load applications, and continuous operation.
- It provides excellent load capacity, reduced friction, and vibration damping, improving the efficiency of rotating machinery and minimizing maintenance downtime.
Product Specification:
- Retainer Type:NYLON
- Available End Cap:U3476C
- Bearing Brand:LINK-BELT 300 SERIES HD BALL
- Bearing Housing:FLG BLK 4 BLT SQ 300 SERIES
- Bearing Housing Material:CAST IRON
- Bearing Type:HEAVY DUTY BALL BRG
- C Dynamic Load Rating:26140 lb
- Co Static Load Rating:17300 lb
- Fixed Expansion:FIXED
- Grease Fitting Size:1/8 NPT
- Housing Coating:POWDER COATED
- Insert:UG347NL
- Locking Device Kit:U3475S
- Lubrication Type:EXXON RONEX MP STD
- Maximum Speed:2650 rpm
- Mounted Clearance:C3 STANDARD
- Net Weight:33.86
- Primary Seal:BUNA DBL LIP SEAL WITH FLGRS
- Service Instructions:BR3-007 LB 200 BALL-300 BALL
- Shaft Locking:SINGLE SET COLLAR
- Size Code:347
- Vibration Frequency Fundamental Train:0.0065 cps
- Vibration Frequency Inner Ring Defect:0.0820 cps
- Vibration Frequency Outer Ring Defect:0.0513 cps
- Vibration Frequency Roller Spin:0.0343 cps
