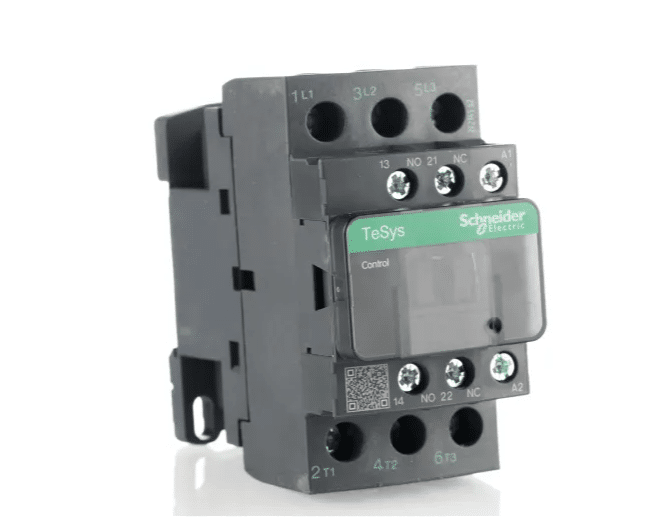

Schneider Electric 394-9740 Contactor
Schneider Electric 394-9740 Contactor
Product Description :
- It is an electrical relay used to control an electric motor, lighting, heating elements, or other electrical loads in industrial and commercial applications. It is designed to handle large currents and voltages, making it suitable for switching heavy-duty loads.
- The main switching mechanism of a contactor consists of contacts made from materials capable of withstanding high currents and repeated operations without excessive wear or arcing. Contacts can be made of materials like silver alloy or other high conductivity materials.
- They are essential components in electrical systems for controlling and switching high-power loads safely and efficiently. Their robust design and ability to handle large currents make them indispensable in industrial, commercial, and residential applications where reliable electrical control is required.
- A Contactor is an electrically controlled switching device used for making or breaking power circuits in motors, lighting, heating, and other electrical loads. Designed for frequent operation, it enables reliable control of high-current circuits using a low-power signal. Contactors are built with durable contacts, arc suppression, and auxiliary blocks for enhanced safety and performance. They are available in various voltage and current ratings to suit industrial, commercial, and residential applications.
Product Specification :
| Coil Voltage | 24 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 18 A |
| Power Rating | 7.5 kW |
| Series | LC1D |
| Range | TeSys D |
| Function | Motor Control |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 45mm |
| Length | 77mm |
| Depth | 86mm |
