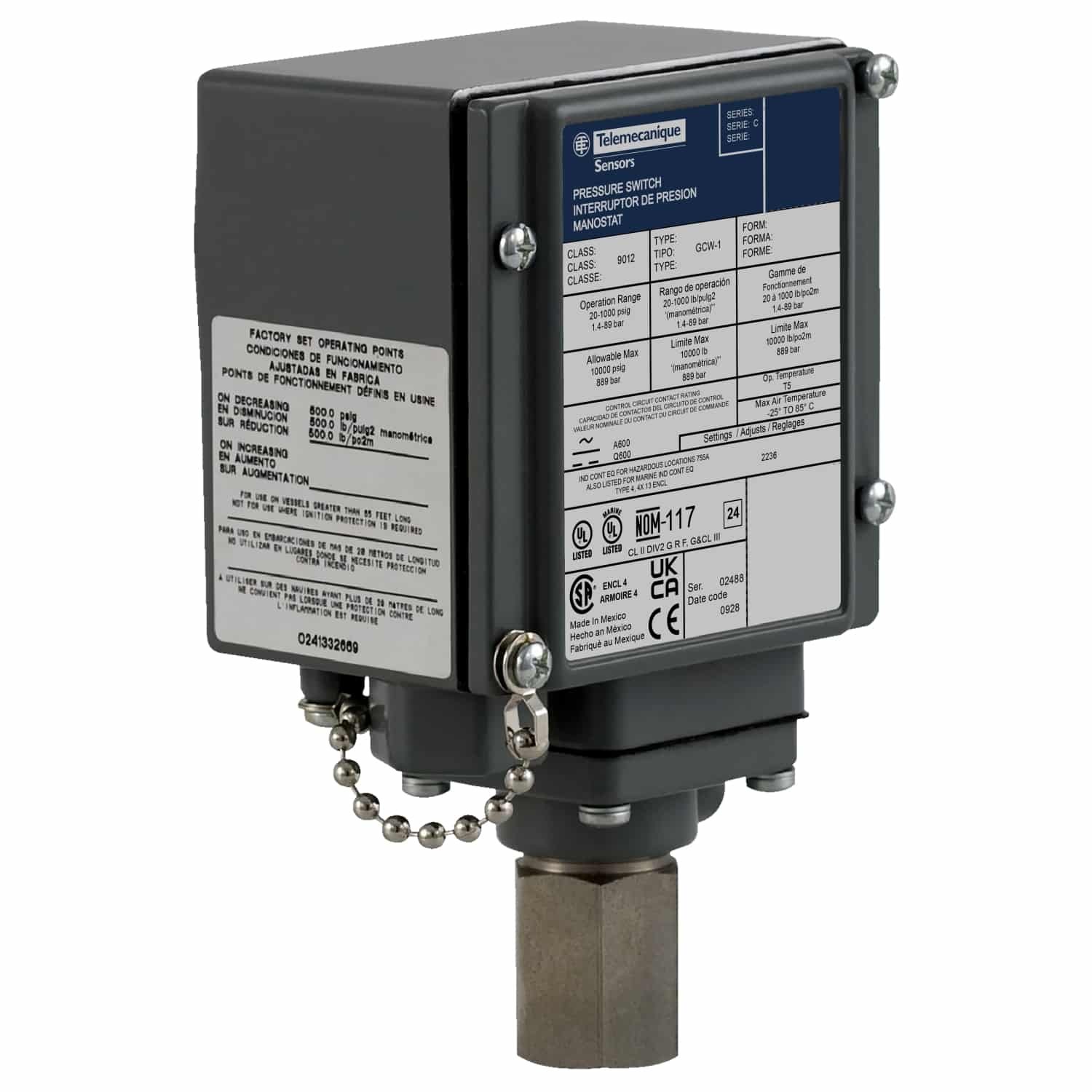

Schneider Electric 9012GCW3 Pressure Switch
Schneider Electric 9012GCW3 Pressure Switch
This switch has a piston actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. Offers mechanical durability of about 3 million operating cycl
- It is approximate adjustable differential at mid range of 289psi to 1260psi and a maximum pressure of 20000psi.
- It is available in size of 3.5inch (W) x 2.63inch (D) x 6.37inch (H) and weighs 3lb.
Product Specification:
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Pressure sensor name | 9012G |
| Pressure sensor size | 5600 psi (38610.64 kPa) |
| Maximum pressure | 20000 psi |
| Contacts type and composition | NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts |
| Controlled fluid | Hydraulic oil -15…250 °F (-26…121 °C)) Selected corrosive gases Air Non-corrosive gas |
| Fluid connection type | 0.25 inch 18 NPTF UL 508 |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
