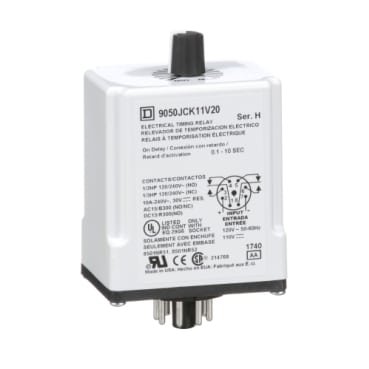

Schneider Electric 9050JCK11V20 Timing Relay
Schneider Electric 9050JCK11V20 Timing Relay
Product Description :
- It is an electromechanical or solid-state device used in industrial control systems to delay the operation of a connected device or circuit for a specific time interval. Timing relays are essential for applications where precise time delays are required for the operation of machinery, processes, or equipment. These relays are used in a wide range of industries, including manufacturing, automation, HVAC, and process control.
- The primary function of a timing relay is to introduce a delay between the activation of the input signal and the output action . The relay can be set for a fixed delay or adjustable delay depending on the application.
- They typically include a set of NO (Normally Open) or NC (Normally Closed) contacts that control the operation of a connected load. The relay’s contacts will change state after the delay time has passed.
Product Specification :
| power consumption | 2 VA |
|---|---|
| current rating | 10 A |
| switch function | DPDT |
| contact composition | 2 NO + 2 NC |
| contact material | Silver nickel |
| maximum switching voltage | 240 V AC |
| mounting type | Socket |
| number of pins | 8 |
| shape of pins | Tubular |
