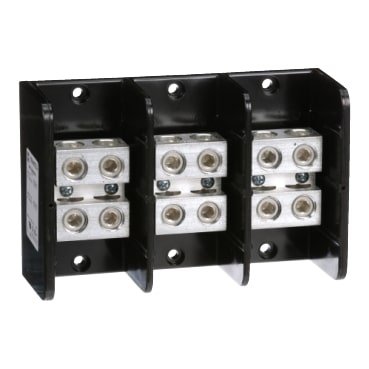

Schneider Electric 9080LBA365202 Distribution Block
Schneider Electric 9080LBA365202 Distribution Block
Product Description :
- It is an electrical component used to manage and distribute electrical power to multiple circuits or devices. It serves as a central connection point for distributing power from a single source to several other components or systems. Power distribution blocks are commonly used in industrial, automotive, and electrical systems to provide organized and efficient power management.
- It allows multiple devices or circuits to be powered from a single source, minimizing the need for multiple individual connections. This simplifies wiring and reduces clutter in electrical systems.
Product Specification :
| Voltage Rating | 600 V AC/DC |
|---|---|
| Mounting Type | Surface mount |
| Number of poles | 3 |
| Terminals per Pole | 2 line 2 load |
| Wire Size | Line 2, AWG 6…350 kcmil, copper or aluminium Load 2, AWG 6…350 kcmil, copper or aluminium |
| Electrical Connection | Tin plated aluminium lugs |
| SCCR | 100 kA UL 508 A |
| Ambient air temperature for operation | -40…150 °C (-40…302 °F) |
| Block Material | Phenolic: block |
