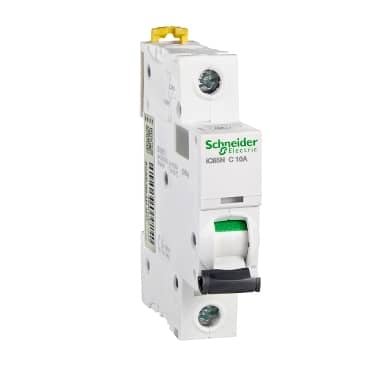

Schneider Electric A9F18110 Miniature Circuit Breaker
Schneider Electric A9F18110 Miniature Circuit Breaker
Product Description :
- It is a small, automatic electrical switch designed to protect an electrical circuit from damage caused by overload or short circuits. Unlike fuses, which need to be replaced after they blow, MCBs can be reset after tripping. They are commonly used in residential, commercial, and industrial settings to prevent electrical fires and protect wiring and equipment from excessive currents.
- It is designed to prevent overheating of wires and circuits by automatically disconnecting the power when the current exceeds a safe limit.They are also equipped to protect against short circuits, which occur when a low-resistance path forms unexpectedly in the circuit (e.g., a wire touches a metal surface).
Product Specification:
| Grid frequency | 50/60 Hz |
|---|---|
| Rated operating voltage [Ue] | 230V AC 50/60Hz |
| Magnetic trip limit | 5…10 x In |
| Current limiting level | 3 |
| Rated insulation voltage [Ui] | 500 V AC |
| Rated impulse withstand voltage [Uimp] | 6 kV |
| Contact position indication | have |
| Control Type | handle |
| Local signal indication | On/off indication |
| Installation Type | Locking clip locked |
| Installation | DIN rail mounting |
| Width (multiples of 9mm) | 2 |
| high | 94 mm |
| depth | 78.5 mm |
