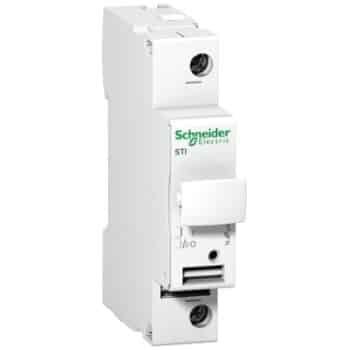

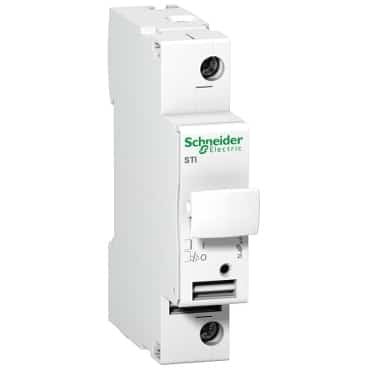

Schneider Electric A9N15635 Fuse Disconnector
Schneider Electric A9N15635 Fuse Disconnector
Product Description :
- It is an electrical device designed to combine the functions of a fuse and a disconnector (also known as an isolator).Like a fuse, it provides overcurrent protection by interrupting the circuit when the current exceeds a safe level, preventing damage to electrical equipment or fire hazards.
Product Specification :
| [In] rated current | 2 A 4 A 6 A 10 A |
|---|---|
| fuse curve | AM GG |
| Fuse size | 8.5 x 31.5 mm |
| [Ue] rated operational voltage | 400 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 75 mm |
| Colour | White |
