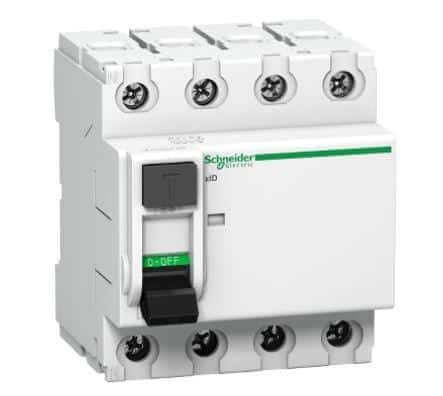

Schneider Electric A9N16260 Circuit Breaker
Schneider Electric A9N16260 Circuit Breaker
Product Description:
- A circuit breaker is an automatic electrical switch designed to protect an electrical circuit from damage caused by overcurrent or short circuits.
- It functions by detecting abnormal conditions in the circuit, such as excessive current flow, and then opening (tripping) to interrupt the current, thereby protecting the wiring, equipment, and other components from potential damage.
- Unlike a fuse, which must be replaced after it blows, a circuit breaker can be manually reset once the fault is cleared.
- It is an electrical switch designed to protect electrical circuits from damage caused by overload or short circuit conditions.
- It functions as a safety device by automatically interrupting the flow of electricity when it detects a fault in the circuit, thereby preventing overheating, fire, or damage to electrical equipment.
- They come in various types and sizes to accommodate different voltage and current ratings, as well as specific applications.
- They are commonly use in residential, commercial, and industrial electrical systems to provide reliable protection against electrical hazards.
- The Schneider Electric A9N16260 Circuit Breaker is a high-performance protective device designed to safeguard electrical circuits from overloads, short circuits, and electrical faults. Engineered by Schneider Electric, this A9N16260 circuit breaker delivers reliable circuit protection, long-lasting durability, and optimal electrical safety in residential, commercial, and industrial applications.
- This Schneider Electric circuit breaker A9N16260 features precision construction, robust housing, and a high interrupting capacity to ensure consistent protection of wiring, motors, and equipment. It is suitable for panel boards, control systems, and power distribution units, providing efficient overcurrent protection and fault isolation.
Product Specification:
| network frequency |
50 Hz
|
|
|---|---|---|
| [Ue] rated operational voltage |
400…415 V AC 50 Hz
|
|
| [Ui] rated insulation voltage |
500 V AC 50 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| contact position indicator |
Yes
|
|
| control type |
Toggle
|
|
| local signalling |
ON, OFF, fault trip
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| comb busbar and distribution block compatibility |
Downside: biconnect
|
|
| 9 mm pitches |
8
|
|
| height |
81 mm
|
|
| width |
72 mm
|
|
| depth |
75 mm
|
|
| net weight |
370 g
|
|
| colour |
White
|
|
| mechanical durability |
4000 cycles
|
|
| electrical durability |
4000 cycles
|
|
| locking options description |
Padlocking device
|
|
| connections – terminals |
Tunnel type terminals (top or bottom) 1…35 mm² rigid
Tunnel type terminals (top or bottom) 1…25 mm² flexible |
|
| wire stripping length |
14 mm for top or bottom connection
|
|
| tightening torque |
3.5 N.m top or bottom
|
