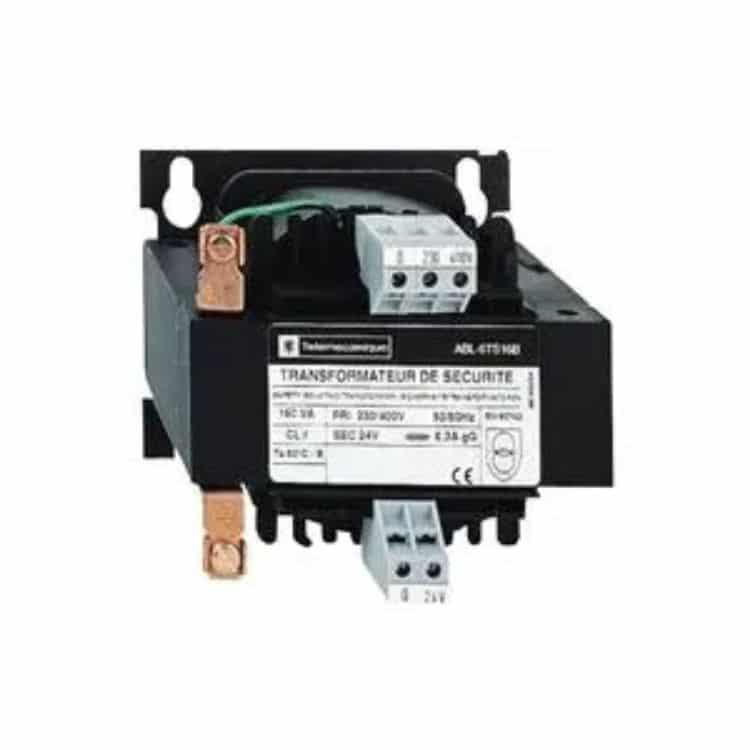

Schneider Electric ABL6TS40B Voltage Transformer
Schneider Electric ABL6TS40B Voltage Transformer
Product Description:
- It is an electrical device used to step down high-voltage electrical signals to a lower, more manageable voltage level. Voltage transformers are commonly used in electrical power systems and industrial applications for various purposes, including measurement, protection, and control.
- The Schneider Electric ABL6TS40B Voltage Transformer is a high-quality, reliable solution designed for precise voltage measurement in electrical systems. Engineered by Schneider Electric, this voltage transformer ensures accurate signal conversion and enhanced electrical safety for industrial and commercial applications.
- With the ABL6TS40B Voltage Transformer, you benefit from Schneider Electric’s trusted technology, which provides stable performance, long service life, and compliance with international safety standards. Ideal for electrical panels, monitoring systems, and control equipment, this voltage transformer guarantees dependable operation in demanding environments.
Product Specification:
| Input voltage limits | 360…440 V 207…253 V |
|---|---|
| Network frequency limits | 47…63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 92 % |
| Power dissipation in W | 34.8 W |
| Output sustained overvoltage | 4 % (no load, hot state) |
| Maximum voltage drop at rated load | 0.7 % |
| No load losses | 12.4 W |
| Short-circuit voltage | 0,045 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections – terminals | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 10 mm² AWG 6 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 135.0 mm |
| Height | 120.0 mm |
| Depth | 136.0 mm |
| Net weight | 6.31 kg |
