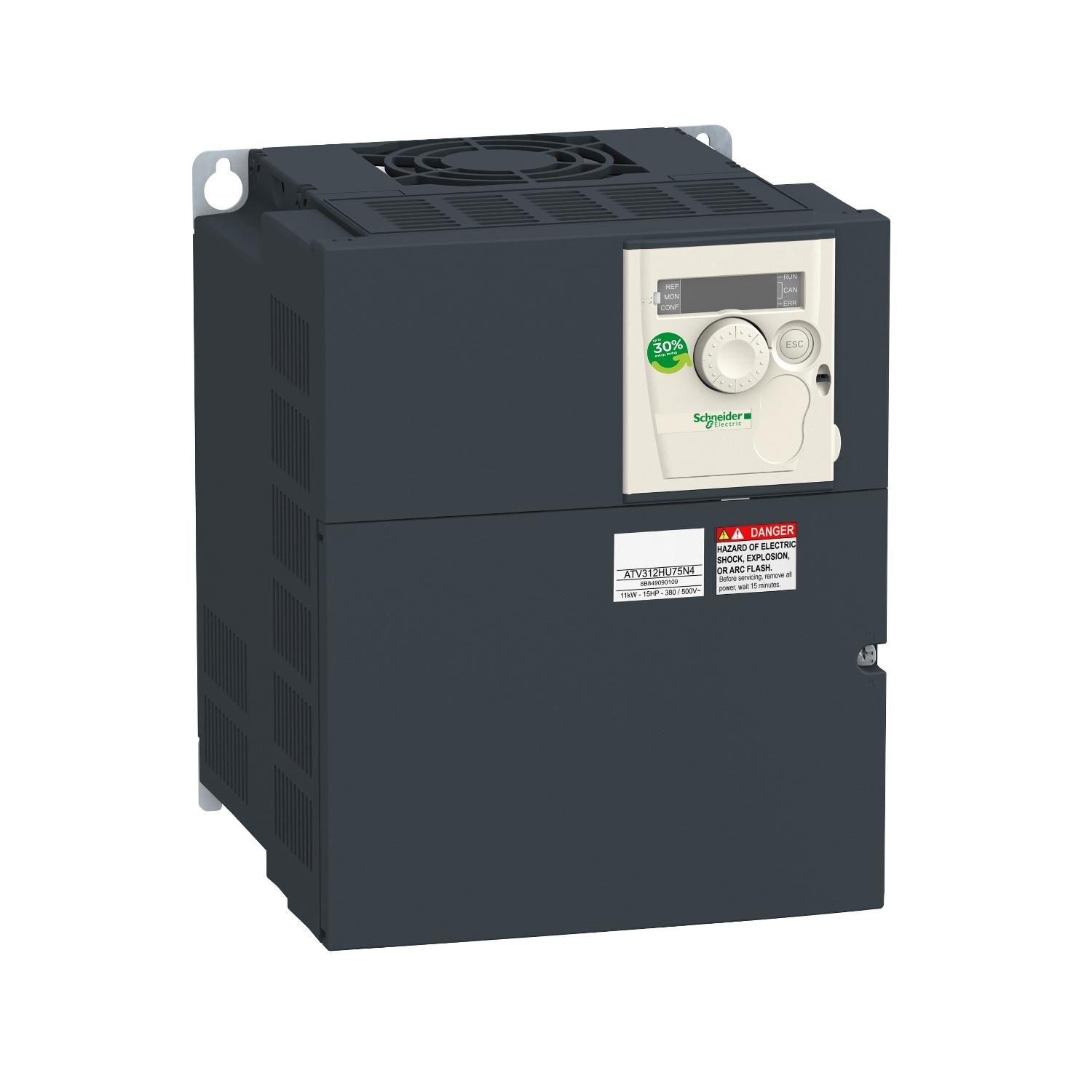

Schneider Electric ATV312HU75N4 Variable Speed Drive
Schneider Electric ATV312HU75N4 Variable Speed Drive
Product Description:
- The use of variable speed drives has become increasingly common as industries and businesses seek ways to reduce energy costs, improve process control, and extend the lifespan of electrical equipment.
- They offer a practical solution for optimizing the operation of electric motors while providing considerable energy savings and improved system performance.
- The Schneider Electric ATV312HU75N4 Variable Speed Drive is a high-performance AC drive designed for precise motor control, energy-efficient operation, and optimized industrial performance. This variable frequency drive (VFD) allows for smooth speed regulation of three-phase motors, improving process control and reducing energy consumption in demanding applications.
- Engineered by Schneider Electric, the ATV312HU75N4 delivers reliable performance, robust protection, and easy integration in industrial systems. It supports variable speed motor control, torque control, and programmable acceleration/deceleration, making it ideal for pumps, fans, conveyors, compressors, HVAC systems, and manufacturing machinery.
Product Specification:
| Component name | ATV312 |
|---|---|
| Motor power kW | 7.5 kW |
| Motor power hp | 10 hp |
| [Us] rated supply voltage | 380…500 V – 15…10 % |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network number of phases | 3 phases |
| Line current | 27.7 A at 380 V, Isc = 22 kA 21 A at 500 V |
| EMC filter | Integrated |
| Apparent power | 18 kVA |
| Maximum transient current | 25.5 A for 60 s |
| Power dissipation in W | 269 W at nominal load |
| Speed range | 1…50 |
