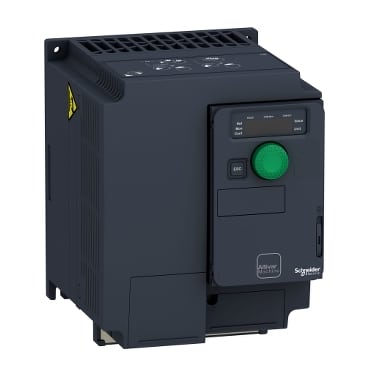

Schneider Electric ATV320U30N4C Variable Speed Drive
Schneider Electric ATV320U30N4C Variable Speed Drive
Product Description :
- The use of variable speed drives has become increasingly common as industries and businesses seek ways to reduce energy costs, improve process control, and extend the lifespan of electrical equipment. They offer a practical solution for optimizing the operation of electric motors while providing considerable energy savings and improved system performance.
Product Specification:
| Nominal switching frequency | 4 kHz |
|---|---|
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Line current | 11.1 A at 380 V (heavy duty) 8.4 A at 500 V (heavy duty) |
| Maximum input current | 11.1 A |
| Maximum output voltage | 500 V |
| Apparent power | 7.3 kVA at 500 V (heavy duty) |
| Network frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 5 % |
| Prospective line Isc | 5 kA |
| Base load current at high overload | 7.1 A |
| Power dissipation in W | Fan: 93.0 W at 380 V, switching frequency 4 kHz |
