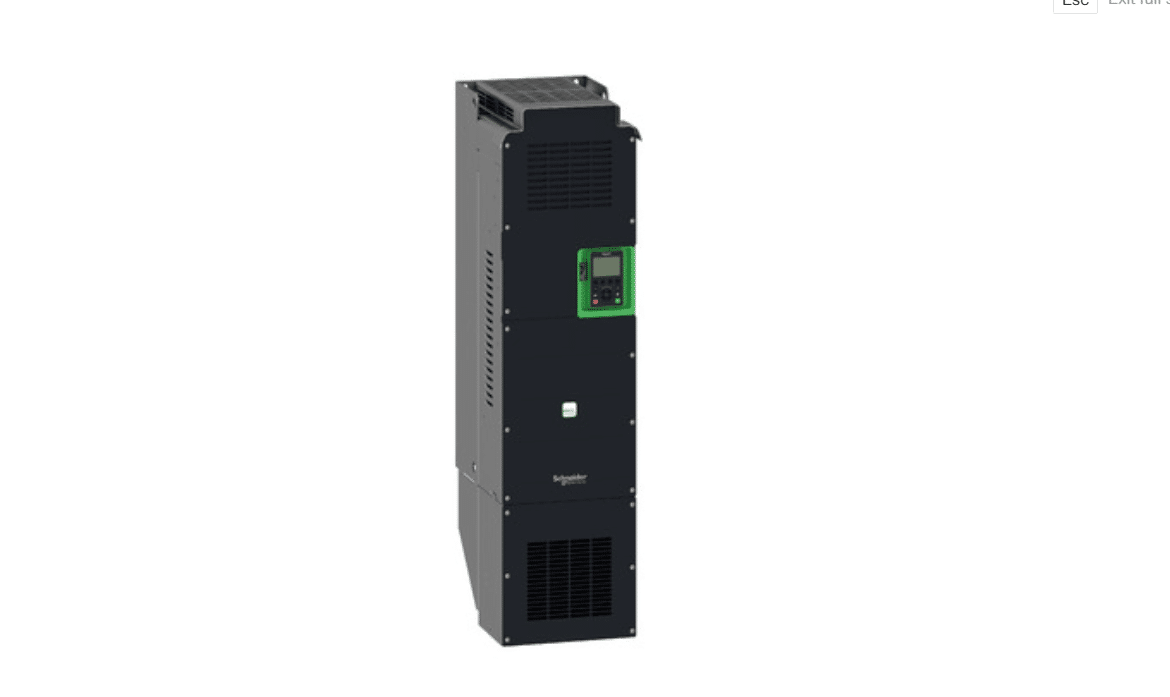

Schneider Electric ATV630C13N4 Variable Speed Drive
Schneider Electric ATV630C13N4 Variable Speed Drive
Product Description :
- The use of variable speed drives has become increasingly common as industries and businesses seek ways to reduce energy costs, improve process control, and extend the lifespan of electrical equipment. They offer a practical solution for optimizing the operation of electric motors while providing considerable energy savings and improved system performance.
-
A Variable Speed Drive (VSD), also known as a variable frequency drive (VFD) or adjustable speed drive, is an advanced electronic device used to control the speed and torque of electric motors by varying the input frequency and voltage. This precise control enables energy savings, improved process control, and extended equipment life.
-
Variable speed drives are widely used in industrial automation, HVAC systems, pumps, conveyors, and manufacturing machinery to optimize motor performance and reduce operational costs. By adjusting motor speed to match load requirements, VSDs enhance efficiency, reduce mechanical stress, and minimize wear and tear.
Product Specification:
| Frequency resolution | Display unit 0.1 Hz Analog input 0.012/50 Hz |
|---|---|
| Transmission frame | RTU |
| Electrical connection | Control removable screw terminals 0.5…1.5 mm² AWG 20…AWG 16 Line side screw terminal 2 x 70…3 x 120 mm² 2 x AWG 2/0…2 x 300 kcmil Motor screw terminal 2 x 70…3 x 120 mm² 2 x AWG 2/0…2 x 300 kcmil |
| Connector type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCP RJ45 on the remote graphic terminal)Modbus serial |
| Data format | 8 bits, configurable odd, even or no parity |
| Type of polarization | No impedance |
| Exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| Number of addresses | 1…247 Modbus serial |
| Method of access | Slave Modbus TCP |
| Supply | External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection |
| Local signalling | for local diagnostic 3 LEDs for embedded communication status 3 LEDs (dual colour) for communication module status 4 LEDs (dual colour) for presence of voltage 1 LED (red) |
| Width | 12.6 in (320 mm) |
| Height | 33.5 in (852 mm) |
| Depth | 15.4 in (390 mm) |
