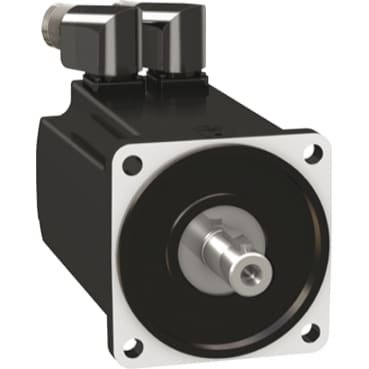

Schneider Electric BMH1003P16A2A Servo Motor
Schneider Electric BMH1003P16A2A Servo Motor
Product Description :
- It is a type of motor that is designed for precise control of angular position, velocity, and acceleration. It typically includes a motor coupled with a sensor for feedback, allowing for highly accurate positioning and speed control. Servo motors are widely used in various applications, such as robotics, CNC machinery, camera auto-focus systems, and remote-controlled vehicles.
- It it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner.
Product Specification :
| Range compatibility | Lexium 32 |
|---|---|
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 7.69 A |
| Continuous power | 3.3 W |
| Maximum current Irms | 29.1 A for LXM32.D30N4 |
| Maximum permanent current | 29.1 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| key width | 30 mm |
| Feedback type | Single turn SinCos Hiperface |
| Motor flange size | 100 mm |
| Number of motor stacks | 3 |
