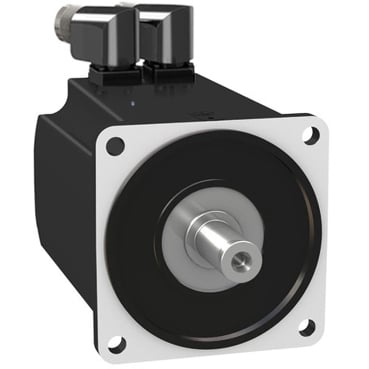

Schneider Electric BMH1403P17F2A Servo Motor
Schneider Electric BMH1403P17F2A Servo Motor
Product Description :
- It is a type of motor that is designed for precise control of angular position, velocity, and acceleration. It typically includes a motor coupled with a sensor for feedback, allowing for highly accurate positioning and speed control. Servo motors are widely used in various applications, such as robotics, CNC machinery, camera auto-focus systems, and remote-controlled vehicles.
- It it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner.
-
A Servo Motor is a high-precision, feedback-controlled electric motor designed to provide accurate control of angular or linear position, velocity, and acceleration. It is widely used in automation, robotics, CNC machinery, and industrial equipment where precise motion control is essential.
-
Equipped with an integrated encoder or resolver, a servo motor continuously monitors its position and adjusts its movement accordingly, ensuring smooth, stable, and responsive operation. Built with robust materials and advanced technology, servo motors deliver high torque at varying speeds, exceptional efficiency, and reliable performance under demanding conditions.
Product Specification :
| Range Compatibility | Lexium 32 |
|---|---|
| [Us] rated supply voltage | 480 V |
| Phase | Three phase |
| Continuous stall current | 18 A |
| Continuous power | 4.8 W |
| Maximum current Irms | 62.3 A LXM32.D72N4 |
| Maximum permanent current | 62.3 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.9 in (24 mm) |
| Shaft length | 2.0 in (50 mm) |
| key width | 1.6 in (40 mm) |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 203.6 lbf.in (23 N.m) holding brake |
| Motor flange size | 5.5 in (140 mm) |
| Number of motor stacks | 3 |
| Torque constant | 1.34 N.m/A 248 °F (120 °C) |
| Back emf constant | 85.9 V/krpm 248 °F (120 °C) |
| Number of motor poles | 10 |
| Rotor inertia | 50.27 kg.cm² |
| Stator resistance | 0.22 Ohm 68 °F (20 °C) |
| Stator inductance | 3 mH 68 °F (20 °C) |
| Stator electrical time constant | 13.6 ms 68 °F (20 °C) |
| Maximum radial force Fr | 2420 N 1000 rpm 1920 N 2000 rpm 1680 N 3000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 19 W |
| type of cooling | Natural convection |
| Length | 10.5 in (267 mm) |
| Centring collar diameter | 5.1 in (130 mm) |
| centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (11 mm) |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
