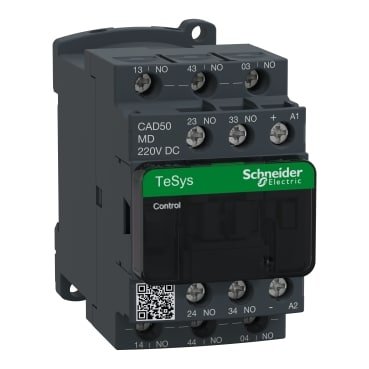

Schneider Electric CAD50MD Control Relay
Schneider Electric CAD50MD Control Relay
Product Description :
- It is an electrically operated switch used to control electrical circuits or devices from a distance. It allows low-power signals to control higher-power circuits, providing isolation and protection for control systems.
- The primary function of relay is to act as an electrically controlled switch. It allows a low-voltage control circuit to control the operation of a higher-voltage circuit or device.
- They provide electrical isolation between the control circuit (often low voltage) and the load circuit (higher voltage), which enhances safety by preventing direct contact or interference between different circuits.
- They amplify signals, allowing small control signals to switch larger currents or voltages, which is crucial in industrial automation and control systems.
- It procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.
Product Specification :
| Utilisation category | DC-13 AC-15 AC-14 |
|---|---|
| Pole contact composition | 5 NO |
| [Ue] rated operational voltage | <= 690 V AC 25…400 Hz |
| Control circuit type | DC standard |
| [Uc] control circuit voltage | 220 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
