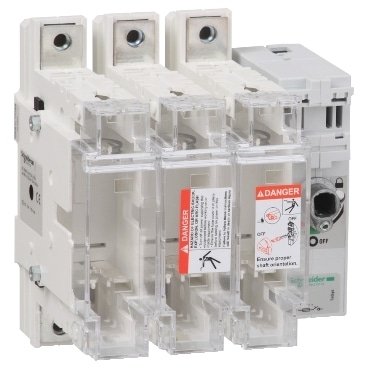

Schneider Electric GS2QQ3 Switch Disconnector
Schneider Electric GS2QQ3 Switch Disconnector
Product Description :
- It is a type of electrical device used to isolate a section of an electrical circuit or system from its power source. It combines the functions of a switch and a disconnector, allowing for safe maintenance, repair, or de-energizing of equipment.
- Allows for the manual opening and closing of the circuit. It can be operated by a handle or motor. Ensures complete separation of the circuit or equipment from the power source to provide safety during maintenance.
- Often equipped with interlocks or mechanisms to prevent the switch from being operated under load or to ensure it is properly isolated before maintenance.
-
A Switch Disconnector is an electrical safety device designed to manually isolate electrical circuits for maintenance, inspection, or emergency purposes. It ensures safe disconnection of power, protecting personnel and equipment from electrical hazards while allowing reliable circuit control.
-
Switch disconnectors are manufactured with high-quality conductive materials, durable insulation, and robust operating mechanisms, providing long-lasting performance, high current capacity, and safety compliance. They are widely used in industrial, commercial, and residential electrical systems.
Product Specification :
| Type of operating handle | External frontal External right side |
|---|---|
| Mounting support | Plate |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Rated operational power in W | 220 kW at 690 V 220 kW at 500 V 220 kW at 400 V 95 kW at 690 V |
| Making capacity | 4000 A at 400 V AC-23B |
| Breaking capacity | 3200 A at 400 V (AC-23B) |
| Short-circuit withstand | 40 kA |
| Mechanical durability | 10000 cycles |
