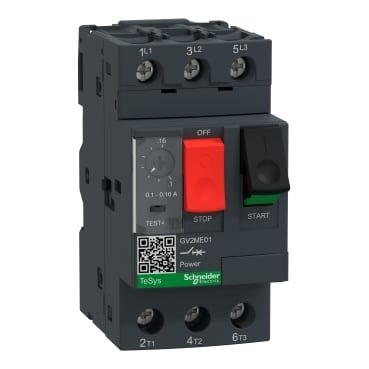

Schneider Electric GV2ME1 Motor Circuit Breaker
Schneider Electric GV2ME1 Motor Circuit Breaker
Product Description:
- A motor circuit breaker (MCB) is a safety device designed to protect an electric motor from overloads, short circuits, and other electrical faults.
- It functions similarly to a standard circuit breaker but is specifically tailored for use with motors, which often experience inrush currents and require protection against both electrical and mechanical damage.
- It is an electrical device designed to protect electric motors and their associated circuits from electrical faults, overloads, and short circuits.
- These devices are crucial for the safe and reliable operation of motors in industrial and commercial applications. motor circuit breakers play a critical role in preventing motor damage, improving safety, and minimizing downtime in industrial and commercial applications by providing comprehensive protection for electric motors and their associated electrical circuits.
Product Specification:
| Control Type | Push-button |
|---|---|
| Line Rated Current | 0.16 A |
| Thermal protection adjustment range | 0.1…0.16 A IEC 60947-4-1 |
| Magnetic tripping current | 1.93 A |
| [Ith] conventional free air thermal current | 0.16 A IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Suitability for isolation | Yes IEC 60947-1 |
| Power dissipation per pole | 2.5 W |
