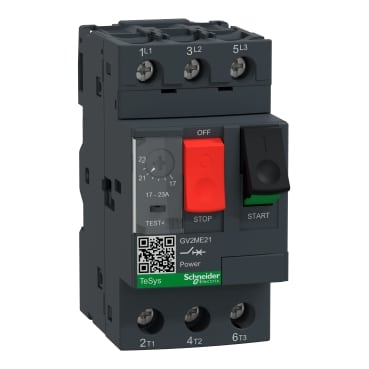

Schneider Electric GV2ME21 Motor Circuit Breaker
Schneider Electric GV2ME21 Motor Circuit Breaker
Product Description :
- It is a specialized type of circuit breaker designed specifically for the protection of electric motors against overload, short circuit, and phase loss conditions. The primary function of a motor circuit breaker is to protect electric motors from damage due to overloads, short circuits, and phase imbalances. It provides both thermal and magnetic protection to ensure that the motor operates safely within its rated parameters.
Product Specification:
| Power dissipation per pole | 2.5 W |
|---|---|
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m – on screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Mounting position | Horizontal Vertical |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
