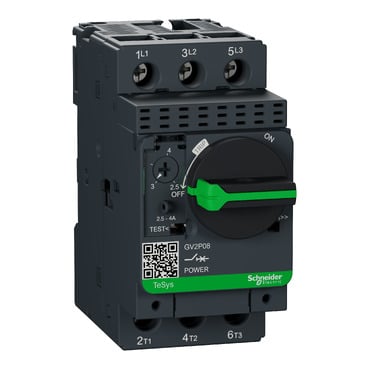

Schneider Electric GV2P08 Circuit Breaker
Schneider Electric GV2P08 Circuit Breaker
Product Description :
- It is an electrical safety device designed to protect an electrical circuit from damage caused by overloads or short circuits. It automatically interrupts the flow of electricity when it detects a fault, thereby preventing damage to wiring, equipment, and reducing the risk of fire or electrical shock.
- It trip to disconnect the circuit when the current exceeds the rated capacity, preventing overheating and potential fire hazards.
- They quickly disconnect the circuit if a short circuit occurs, which can cause a sudden surge of current.
-
A Circuit Breaker is a vital electrical safety device designed to automatically interrupt electrical flow in the event of overloads, short circuits, or fault conditions. It protects electrical systems, machinery, and equipment from damage while ensuring safe and reliable operation.
-
Constructed with high-quality materials, durable contacts, and precise tripping mechanisms, circuit breakers are built to withstand high currents, voltage fluctuations, and frequent switching, making them essential for industrial, commercial, and residential applications.
Product Specification :
| Control type | Rotary handle |
|---|---|
| [In] rated current | 4 A |
| Thermal protection adjustment range | 2.5…4 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 51 A |
| [Ith] conventional free air thermal current | 4 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m – on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
