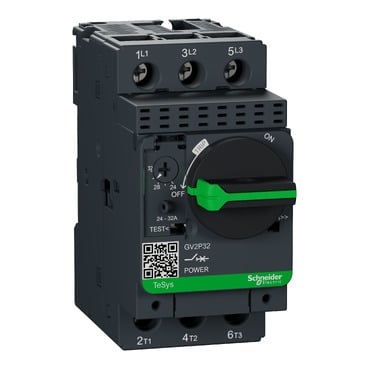

Schneider Electric GV2P32 Circuit Breaker
Schneider Electric GV2P32 Circuit Breaker
Product Description :
- It is an electrical safety device designed to protect an electrical circuit from damage caused by overloads or short circuits. It automatically interrupts the flow of electricity when it detects a fault, thereby preventing damage to wiring, equipment, and reducing the risk of fire or electrical shock.
- It trip to disconnect the circuit when the current exceeds the rated capacity, preventing overheating and potential fire hazards.
- They quickly disconnect the circuit if a short circuit occurs, which can cause a sudden surge of current.
-
A Circuit Breaker is a critical electrical safety device designed to automatically interrupt the flow of electricity in a circuit during overloads, short circuits, or other fault conditions. It protects electrical systems, equipment, and personnel by preventing damage, fire hazards, and system failures.
-
Circuit breakers are manufactured using high-quality metals, durable contacts, and precise tripping mechanisms, ensuring long-lasting reliability, fast response, and consistent protection in industrial, commercial, and residential environments.
Product Specification :
| Control type | Rotary handle |
|---|---|
| [In] rated current | 32 A |
| Thermal protection adjustment range | 24…32 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 416 A |
| [Ith] conventional free air thermal current | 32 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m – on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Colour | Dark grey |
