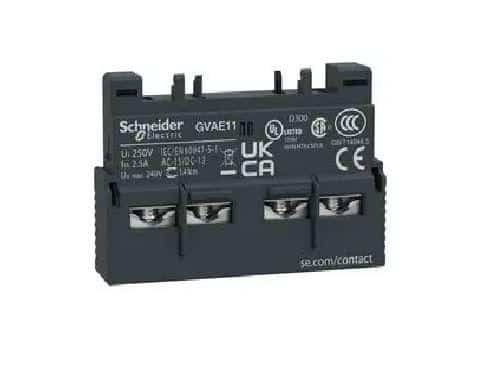

Schneider Electric GVAE11 Contact Block
Schneider Electric GVAE11 Contact Block
Product Description:
- They are activated or actuated when a user operates a control device, such as pressing a push-button, turning a selector switch, or toggling a lever switch.
- Contact blocks are typically design for easy mounting within control panels or on control devices.
- They can be secured with screws or clips, and some may snap into place for quick installation.
- Contact blocks serve different functions depending on the application.
Product Specification:
| Tightening torque | 1.4 N.m – on screw clamp terminals |
|---|---|
| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
| Net weight | 0.02 kg |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 250 V conforming to IEC 60947-1 |
|---|---|
| [Ue] rated operational voltage | 24…240 V AC 24…60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A GB2CB06 circuit breaker 10 A |
