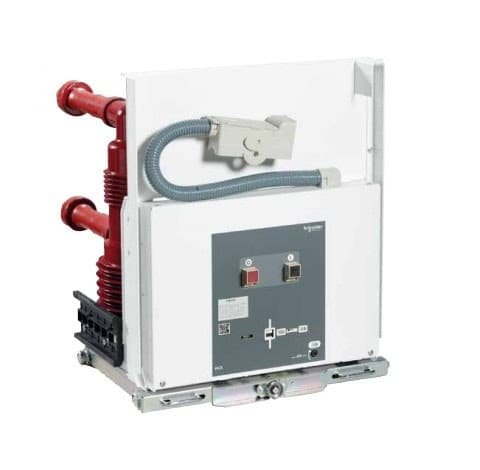

Schneider Electric HVX 12-50-12 Vaccum Circuit Breaker
Schneider Electric HVX 12-50-12 Vaccum Circuit Breaker
Product Description :
- It is a type of circuit breaker where the arc interruption takes place in a vacuum. It is widely used for medium-voltage applications (typically from 1 kV to 36 kV) due to its excellent arc-quenching and insulating properties.
-
The arc is quickly extinguished because the vacuum has no medium to sustain it.Metal vapor condenses rapidly, restoring the vacuum’s dielectric strength.
Product Specification :
- Rated voltage 12 kV – 17.5 kV – 24 kV
• Rated short circuit breaking current 25 kA – 31.5 kA – 40 kA – 50 kA
• Rated short circuit duration 3s
• Rated normal current 630 A – 1250 A – 1600 A – 2500 A – 3150 A – 4000 A – *5000 A* (*forced cooling in PIX-H)
• No free-standing pole column
• Vacuum interrupter chamber suspended free of external forces
• Pole envelope with supporting and insulating functions
• High mechanical protection thanks to pole envelope
