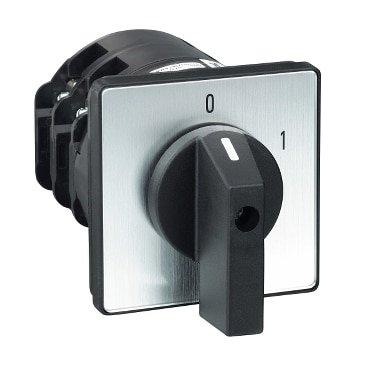

Schneider Electric K115C003AP Cam Switch
Schneider Electric K115C003AP Cam Switch
Product Description :
- It is an electrical switch that operates using a rotary mechanism with a series of cams (protrusions) on a rotating shaft. These switches are designed to control the sequence of electrical circuits by rotating the switch mechanism to different positions. Cam switches are widely used in industrial applications where precise control over electrical circuits, such as motors, lights, and other electrical loads, is required.
- The core component is a rotary shaft that rotates to different positions. This shaft is typically connected to an external handle or knob for manual operation.
- They are housed in durable enclosures made of materials such as plastic or metal. The enclosure protects the internal components from dust, moisture, and mechanical damage.
- They operate manually by rotating the shaft to select different cam positions. Each position corresponds to a specific electrical circuit configuration, allowing for sequential control or switching of loads.
-
A Cam Switch is a mechanical rotary switch designed to control the operation of electrical circuits through sequential switching positions. It operates using a rotating cam mechanism that opens and closes contacts, allowing precise manual control of current flow, direction, and function in electrical systems.
-
Built with high-quality conductive materials and durable housings, cam switches provide long service life, reliable switching performance, and excellent electrical insulation. They are widely used in industrial control panels, machinery, and power distribution systems.
Product Specification :
- CAD overall width : 88 mm
- CAD overall height : 88 mm
- CAD overall depth: 128 mm
