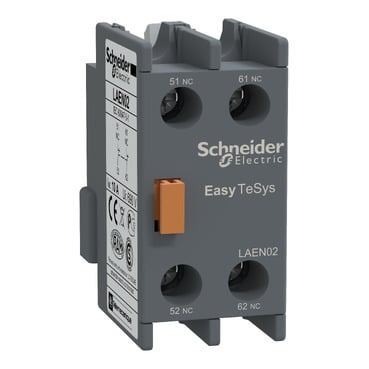

Schneider Electric LAEN02 Auxiliary Contact Block
Schneider Electric LAEN02 Auxiliary Contact Block
Product Description :
- It is an additional component that can be added to a main contactor or relay. Its primary function is to provide additional control functions or feedback signals in electrical circuits.
- It consists of one or more electrical contacts, typically made of materials like silver alloy for durability and reliable operation. These contacts are designed to open or close in response to the status of the main contactor or relay.
- They can be used to implement safety interlocks, ensuring that certain operations or processes can only proceed under specific conditions.
- Â Clip-on front mounting, it procures high reliability and durability. They expand the functionality and versatility of main contactors and relays by adding additional control, feedback, and safety features to electrical circuits.
- Their integration is crucial in industrial automation, motor control, and safety systems where precise control and monitoring of electrical devices are essential.
Product Specification :
| Mounting location | Front |
|---|---|
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 2 NC |
| [Ui] rated insulation voltage | 690 V – for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A – 1 s 120 A – 500 ms 140 A – 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 10 Mcycles |
| Minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
