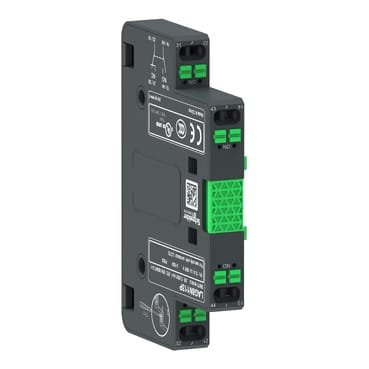

Schneider Electric LAG8N113P Auxiliary Contact Block
Schneider Electric LAG8N113P Auxiliary Contact Block
Product Description:
-
An Auxiliary Contact Block is an add-on device used with contactors, motor starters, or circuit breakers to provide additional signaling or control contacts.
-
It does not carry the main load current but instead operates in parallel to the main contacts to relay information to control circuits, indicating the open or closed status of the primary device.
-
Auxiliary contact blocks are essential in automation systems for enabling interlocking, feedback, sequencing, and control logic functions.
- An Auxiliary Contact Block is a compact yet powerful accessory for expanding the functionality of your electrical control systems, providing reliable and accurate signaling for improved automation and safety.
Product Specification:
| Minimum switching current | 1 mA |
|---|---|
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Height | 55.8 mm |
| Width | 15.4 mm |
| Depth | 84.8 mm |
| Product weight | 0.05 kg |
