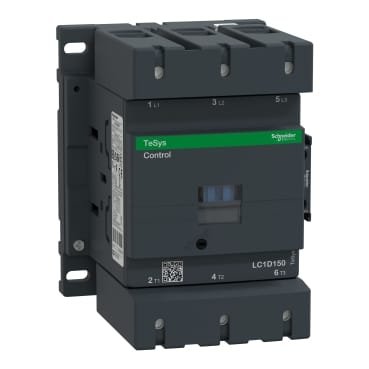

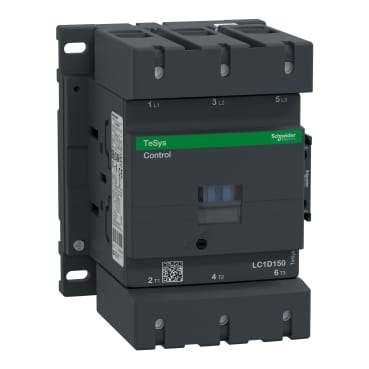

Schneider Electric LC1D150U7 Contactor
Schneider Electric LC1D150U7 Contactor
Product Description :
- It is an electrical relay used to control an electric motor, lighting, heating elements, or other electrical loads in industrial and commercial applications. It is designed to handle large currents and voltages, making it suitable for switching heavy-duty loads.
- The main switching mechanism of a contactor consists of contacts made from materials capable of withstanding high currents and repeated operations without excessive wear or arcing. Contacts can be made of materials like silver alloy or other high conductivity materials.
- They are essential components in electrical systems for controlling and switching high-power loads safely and efficiently. Their robust design and ability to handle large currents make them indispensable in industrial, commercial, and residential applications where reliable electrical control is required.
Product Specification :
| IP degree of protection | IP20 front face conforming to IEC 60529 |
|---|---|
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C 60…70 °C with derating |
| Operating altitude | 0…3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5…300 Hz) Vibrations contactor closed (4 Gn, 5…300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Height | 158 mm |
| Width | 120 mm |
| Depth | 136 mm |
