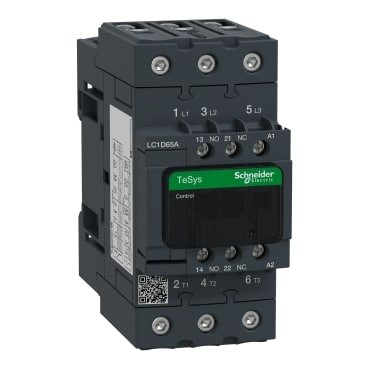

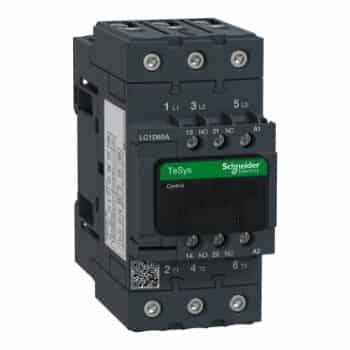

Schneider Electric LC1D65AG7 Contactor
Schneider Electric LC1D65AG7 Contactor
Product Description :
- It is an electrical relay used to control an electric motor, lighting, heating elements, or other electrical loads in industrial and commercial applications. It is designed to handle large currents and voltages, making it suitable for switching heavy-duty loads.
- The main switching mechanism of a contactor consists of contacts made from materials capable of withstanding high currents and repeated operations without excessive wear or arcing. Contacts can be made of materials like silver alloy or other high conductivity materials.
- They are essential components in electrical systems for controlling and switching high-power loads safely and efficiently. Their robust design and ability to handle large currents make them indispensable in industrial, commercial, and residential applications where reliable electrical control is required.
Product Specification :
-
Control circuit type AC at 60 Hz Coil technology Without built-in suppressor module Control circuit voltage limits 0.3…0.6 Uc (-40…70 °C):drop-out AC 60 Hz
0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz
1…1.1 Uc (60…70 °C):operational AC 60 HzInrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C) Heat dissipation 4…5 W at 60 Hz Operating time 4…19 ms opening
12…26 ms closingMaximum operating rate 3600 cyc/h at 60 °C
