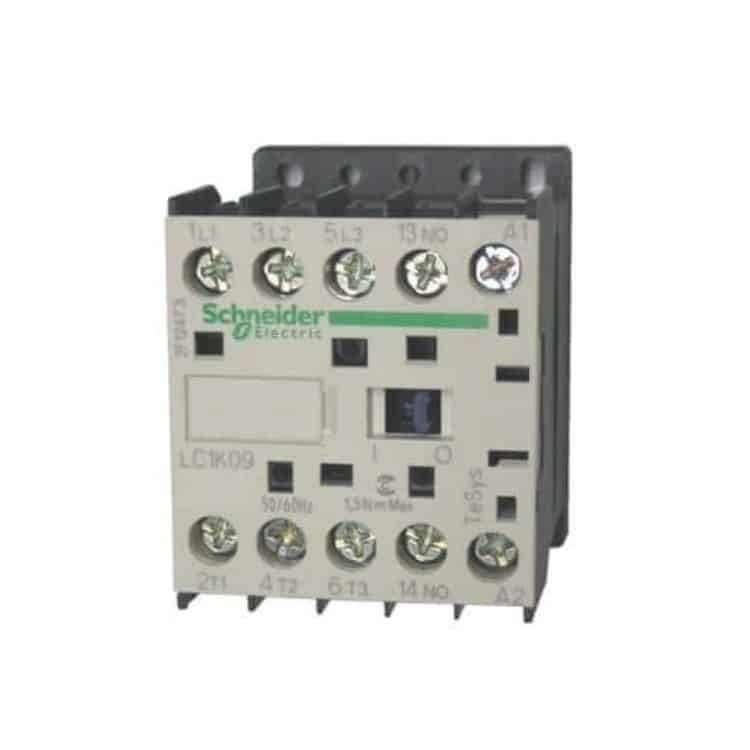

Schneider Electric LC1K09 Miniature Contactor
Schneider Electric LC1K09 Miniature Contactor
Product Description :
- Miniature contactors are smaller in size compared to standard or industrial-sized contactors. They are designed to fit into tight spaces and are often used in applications where space is limited, such as control panels, smaller electrical enclosures, or on printed circuit boards (PCBs).
- The Schneider Electric LC1K09 Miniature Contactor is a high-performance and compact switching device designed for reliable control of electrical circuits in industrial and commercial applications. Built with Schneider Electric’s advanced engineering standards, the Schneider Electric LC1K09 Miniature Contactor ensures efficient motor control, long service life, and safe operation in demanding environments.
- The Schneider Electric LC1K09 Miniature Contactor is widely used in automation systems, HVAC equipment, control panels, and machinery where space-saving design and dependable switching performance are essential. With its durable construction, the Schneider Electric LC1K09 Miniature Contactor delivers consistent operation even under frequent switching conditions.
Product Specification :
| Utilisation category | AC-3 AC-3e AC-1 AC-4 |
|---|---|
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit <= 690 V AC <= 400 Hz Signalling circuit <= 690 V AC <= 400 Hz |
| [Ie] rated operational current | 9 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 9 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit 20 A 140 °F (60 °C)) <= 690 V AC AC-1 power circuit |
| Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Motor power kW | 2.2 kW 220…230 V AC 50/60 Hz AC-3 4 kW 380…415 V AC 50/60 Hz AC-3 4 kW 440/690 V AC 50/60 Hz AC-3 2.2 kW 220…230 V AC 50/60 Hz AC-3e 4 kW 380…415 V AC 50/60 Hz AC-3e 4 kW 440/690 V AC 50/60 Hz AC-3e 2.2 kW 220…230 V AC 50/60 Hz AC-4 4 kW 380…415 V AC 50/60 Hz AC-4 4 kW 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary contact composition | 1 NO |
| [Uimp] rated impulse withstand voltage | 8 kV |
