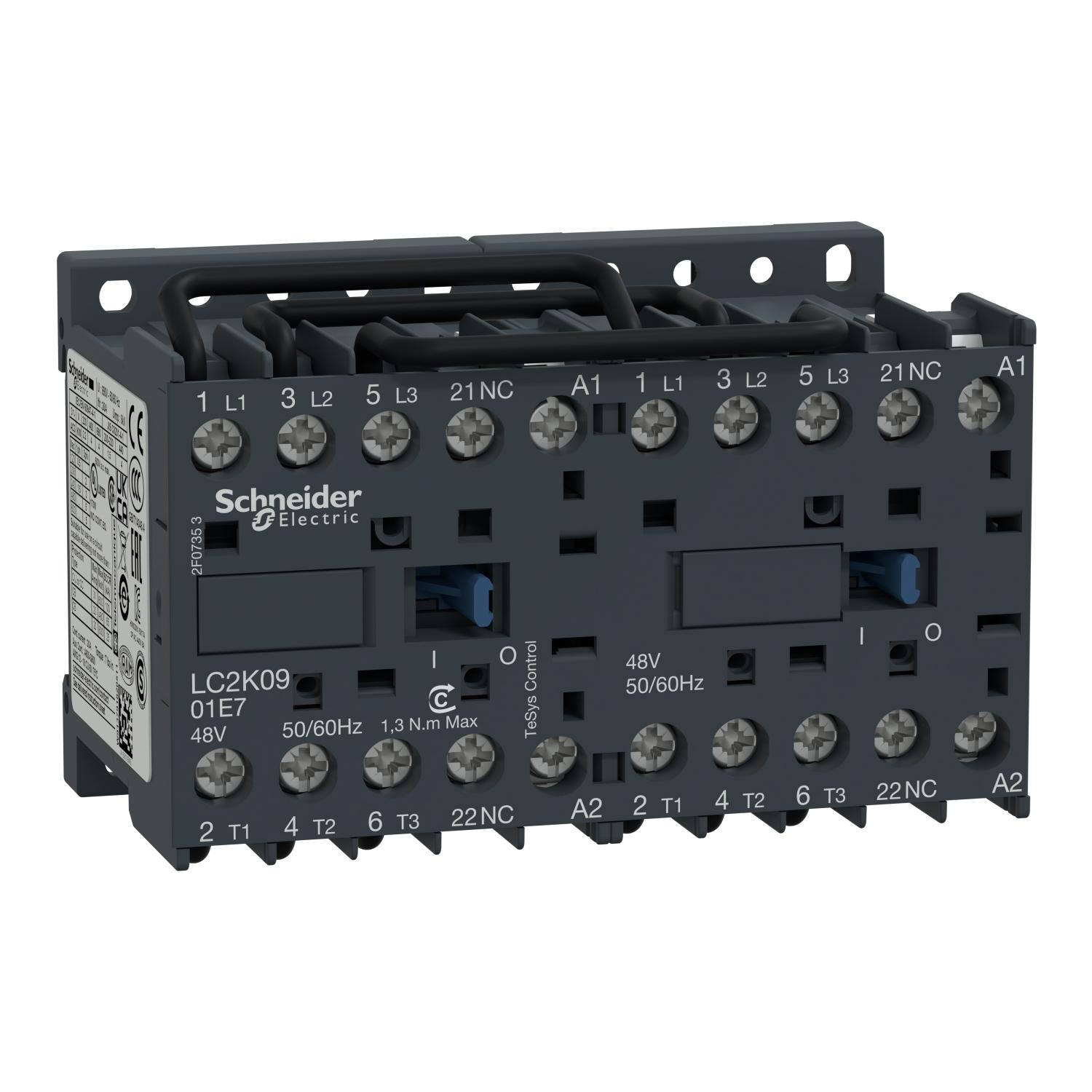

Schneider Electric LC2K0901E7 Reversing Contactor
Schneider Electric LC2K0901E7 Reversing Contactor
Product Description :
- It is an electrical device use to reverse the direction of rotation of an electric motor. A reversing contactor includes two sets of contacts: one for the forward direction and one for the reverse direction. It is an electrical switch that is designed to handle high currents. It consists of a coil, which when energized, generates a magnetic field that pulls together a set of contacts, closing an electrical circuit.
- The Schneider Electric LC2K0901E7 Reversing Contactor is a high-performance industrial control device designed for reliable motor reversing operations in demanding electrical systems. The Schneider Electric LC2K0901E7 Reversing Contactor ensures safe switching between forward and reverse motor directions, making it ideal for automation, machinery, and heavy-duty industrial applications.
- Built with Schneider Electric’s advanced engineering standards, the Schneider Electric LC2K0901E7 Reversing Contactor offers excellent durability, long electrical life, and consistent performance under high load conditions. It is widely used in motor control circuits where precision and reliability are critical.
Product Specification :
| Control circuit voltage limits | Operational 0.8…1.15 Uc 122 °F (50 °C)) Drop-out 0.2…0.75 Uc 122 °F (50 °C)) |
|---|---|
| Inrush power in VA | 30 VA 68 °F (20 °C)) |
| Hold-in power consumption in VA | 4.5 VA 68 °F (20 °C)) |
| Heat dissipation | 1.3 W |
| Auxiliary contacts type | Instantaneous 1 NC |
| Signalling circuit frequency | <= 400 Hz |
| Minimum switching current | 5 mA signalling circuit |
| Minimum switching voltage | 17 V signalling circuit |
| Non overlap distance | 0.02 in (0.5 mm) |
| Insulation resistance | > 10 MOhm signalling circuit |
