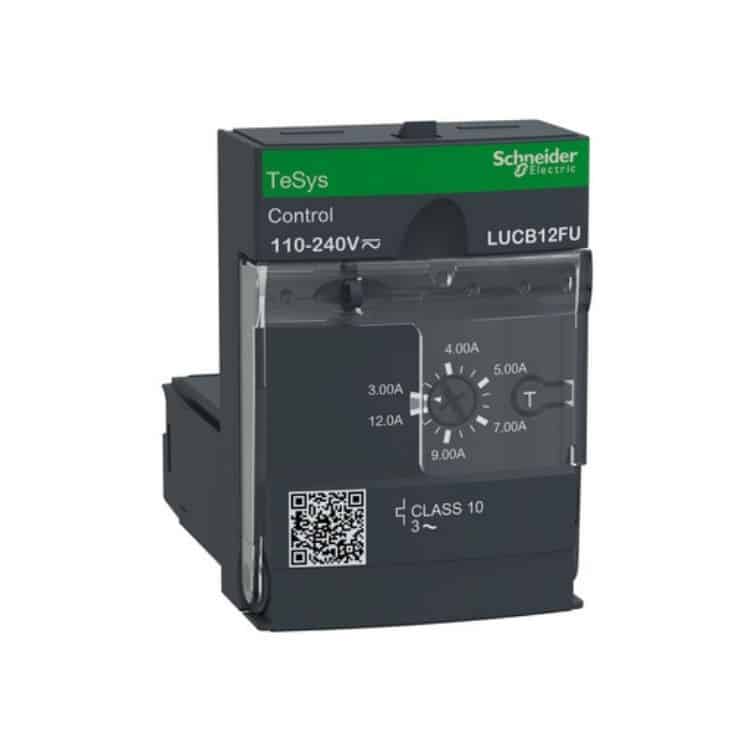

Schneider Electric LUCB12FU Advanced Control Unit
Schneider Electric LUCB12FU Advanced Control Unit
Product Description:
- An Advanced Control Unit (ACU) is a high-performance electronic control system designed to manage, monitor, and optimize the operation of industrial machinery, automation systems, and complex equipment.
- It serves as the central brain of the system, integrating inputs from sensors, actuators, and user interfaces to ensure efficient, precise, and safe operation.
- Built with state-of-the-art components and robust circuitry, the Advanced Control Unit offers fast processing, reliable signal management, and high resistance to environmental stresses such as vibration, temperature fluctuations, and electrical interference.
- It is widely used in industrial automation, HVAC systems, compressors, process control, and energy management applications.
- The Schneider Electric LUCB12FU Advanced Control Unit is a high-performance industrial control device designed to monitor, regulate, and automate complex electrical systems.
- Engineered by Schneider Electric, this advanced control unit provides precise system management, reliable operation, and enhanced safety for industrial, commercial, and manufacturing applications.
- Built with robust hardware and intelligent software, the LUCB12FU Advanced Control Unit delivers real-time monitoring, programmable logic control (PLC) integration, and seamless connectivity with other Schneider Electric automation solutions.
- Its high-precision sensors, advanced algorithms, and durable construction ensure optimal system performance, reduce downtime, and enhance operational efficiency.
Product Specification:
| Range | TeSys |
|---|---|
| Range of product | TeSys Ultra |
| Product name | TeSys Ultra |
| Device short name | LUCB |
| Product or component type | Advanced control unit |
| Device application | Motor control Motor protection |
| Product specific application | Basic protection and advanced functions, communication |
| main function available | Earth fault protection Protection against phase failure and phase imbalance Protection against overload and short-circuit Manual reset |
| Product compatibility | Power base LUB12 Power base LUB32 Power base LUB38 Power base LUB120 Power base LUB320 Power base LUB380 Reversing contactor breaker LU2B12FU Reversing contactor breaker LU2B32FU Reversing contactor breaker LU2B38FU |
| [Ue] rated operational voltage | 690 V AC |
| Network frequency | 40…60 Hz |
| Load type | 3-phase motor – cooling: self-cooled |
| Utilisation category | AC-43 AC-44 AC-41 |
| Motor power kW | 5.5 kW at 400…440 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 9 kW at 690 V AC 50/60 Hz |
| rated motor current adjustment range | 3…12 A |
| Thermal overload class | Class 10 – frequency limit: 40…60 Hz – temperature compensation: -25…70 °C conforming to IEC 60947-6-2 Class 10 – frequency limit: 40…60 Hz – temperature compensation: -25…70 °C conforming to UL 508 |
| Tripping threshold | 14.2 x Ir +/- 20 % |
| Phase failure sensitivity | Yes |
| [Uc] control circuit voltage | 110…240 V AC 110…220 V DC |
