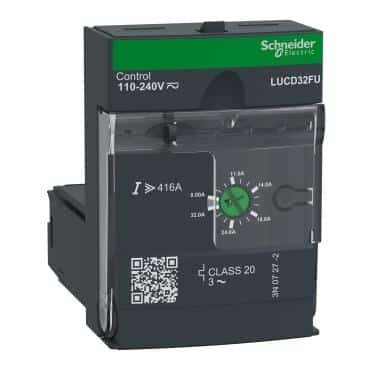

Schneider Electric LUCD32FU Control Unit Advanced control unit, Ultra, 8A to 32A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC
Schneider Electric LUCD32FU Control Unit
- LUCD32FU
Product Description:
TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault
Product Specification:
| device short name | LUCD |
|---|---|
| Product or Component Type | Advanced control unit |
| Device Application | Motor control Motor protection |
| Product Specific Application | Basic protection and advanced functions, communication |
| Fixing mode | Plug-in front face) |
|---|---|
| Width | 1.77 in (45 mm) |
| Height | 2.60 in (66 mm) |
| Depth | 2.36 in (60 mm) |
