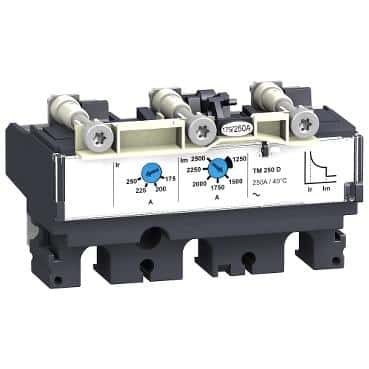

Schneider Electric LV429033 Trip Unit
Schneider Electric LV429033 Trip Unit
Product Description:
- Trip units play a significant role in protecting electrical systems and ensuring their safe and reliable operation.
- The Schneider Electric LV429033 Trip Unit is a high-performance, reliable protective device designed for circuit breakers in industrial, commercial, and residential electrical systems.
- This trip unit provides accurate overcurrent protection, short-circuit detection, and fault isolation, ensuring safe and efficient operation of electrical networks.
- Engineered by Schneider Electric, the LV429033 Trip Unit delivers precision, durability, and long-lasting performance in demanding electrical applications. It features adjustable trip settings, fast response times, and robust construction, making it ideal for power distribution, industrial panels, commercial electrical systems, and mission-critical machinery.
Product Specification:
| Range | ComPact |
|---|---|
| Range of product | ComPact NSX100…250 DC ComPact NSX100…250 |
| Product or component type | Trip unit |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Range compatibility | ComPact NSX100 ComPact NSX160 ComPact NSX100 DC |
| Device application | Distribution |
| Number of poles | 3P |
| Protected poles description | 3t |
| Trip unit protection functions | LI |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rated current | 50 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz 750 V DC |
| Network type | AC DC |
| Network frequency | 50/60 Hz |
