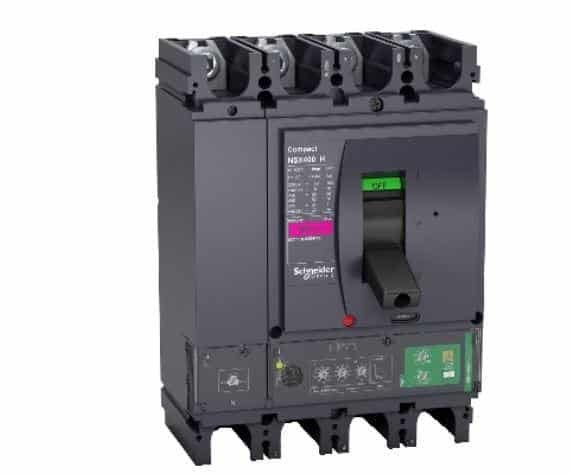

Circuit breaker ComPact 160-400A 4P4d 70kAÂ LV43394
Schneider Electric LV433944 Circuit Breaker
Technical Specification:
- Width (W)140 mm
- Height (H)161 mm
- Depth (D)86 mm
Specification:
| Network type |
AC |
| Network frequency |
50/60 Hz |
| Suitability for isolation |
Yes conforming to EN/IEC 60947-2 |
| Utilisation category |
Category A |
| Performance level |
H 70 kA 415 V AC |
| Trip unit name |
MicroLogic 4.3 |
| Trip unit technology |
Electronic |
| Trip unit protection functions |
LSoIR |
| Control type |
Toggle |
| Circuit breaker mounting mode |
Fixed |
| Mechanical durability |
15000 cycles |
| Electrical durability |
6000 cycles at 440 V In
12000 cycles at 440 V In/2 |
| Mounting support |
Backplate |
| Upside connection |
Front |
| Downside connection |
Front |
| Connection pitch |
45 mm |
