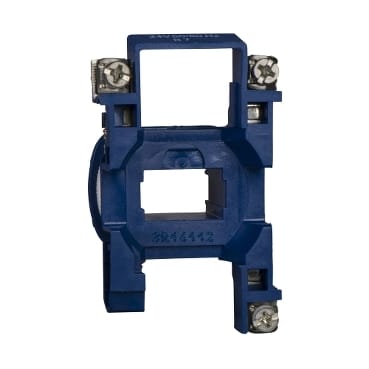

Schneider Electric LX1D2F7 Contactor Coil
Schneider Electric LX1D2F7 Contactor Coil
Product Description :
- It is a key component in a contactor, which is an electrically operated switch used to control high-power electrical circuits. The coil in a contactor plays a crucial role in the switching mechanism, enabling the contactor to open or close its contacts based on the control signals it receives.
- It is made of wire wound around a magnetic core. When an electric current flows through the coil, it creates a magnetic field that moves an armature or plunger.
- This movement of the armature or plunger opens or closes the contactor’s main contacts, thereby controlling the flow of electricity to the connected load.
Product Specification :
| Control circuit voltage limits | 0.8…1.1 Uc (at <55 °C) |
|---|---|
| Inrush power in VA | 70 VA 50/60 Hz |
| Hold-in power consumption in VA | 8 VA 50/60 Hz |
