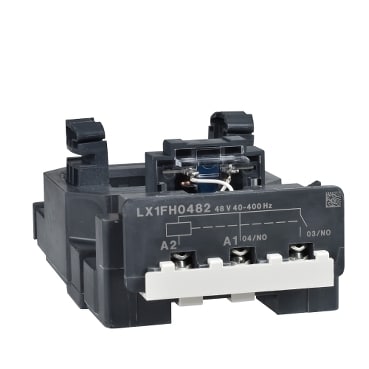

Schneider Electric LX1FH2202 Contactor Coil
Schneider Electric LX1FH2202 Contactor Coil
Product Description :
- It is a key component in a contactor, which is an electrically operated switch used to control high-power electrical circuits. The coil in a contactor plays a crucial role in the switching mechanism, enabling the contactor to open or close its contacts based on the control signals it receives.
- It is made of wire wound around a magnetic core. When an electric current flows through the coil, it creates a magnetic field that moves an armature or plunger.
- This movement of the armature or plunger opens or closes the contactor’s main contacts, thereby controlling the flow of electricity to the connected load.
-
The Contactor Coil is an essential electrical component that generates a magnetic field when energized, enabling the operation of a contactor to switch electrical circuits on or off. It ensures reliable control of motors, machinery, and industrial equipment in automation and electrical systems.
-
Manufactured with high-quality copper windings and durable insulation, contactor coils provide long-lasting performance, consistent operation, and resistance to heat and electrical stress. They are widely used in motor starters, control panels, industrial machinery, and automation applications.
Product Specification :
| Range compatibility | TeSys TeSys F LC1F contactor |
|---|---|
| Product compatibility | LC1F265 LC1F330 |
| Control circuit type | AC at 40…400 Hz |
| [Uc] control circuit voltage | 220…230 V AC 40…400 Hz |
| Average resistance | 70.6 Ohm inrush at 20 °C 1578 Ohm holding at 20 °C |
| Operating time | 100…170 ms opening 40…65 ms closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
