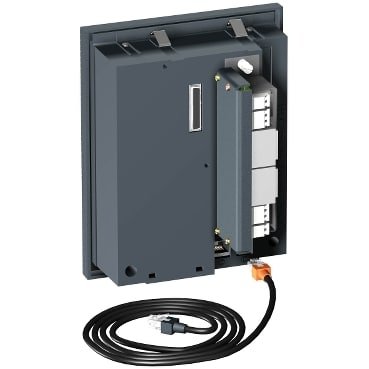

Schneider Electric MCS025 Synchro Check Module
Schneider Electric MCS025 Synchro Check Module
Product Description :
- It is an essential device used in electrical power systems to ensure that two or more sources of electrical power are properly synchronized before they are connected to each other. This is commonly used in systems that involve multiple power sources, such as generators, grid connections, or backup power systems, to prevent damage to equipment and ensure the safety and stability of the electrical network.
- By ensuring proper synchronization, the module protects sensitive electrical equipment from the harmful effects of unsynchronized power sources.
-
A Synchro Check Module is an electrical control device used in power generation and distribution systems to ensure that two AC power sources are synchronized before they are connected. It verifies that the voltage, frequency, and phase angle of the incoming power match those of the existing system, preventing damage from unsynchronized connections.
-
Synchro check modules are commonly employed in generators, switchgear, power plants, and industrial power systems where safe and reliable synchronization is critical. By providing precise monitoring and control, these modules help maintain system stability and protect equipment from electrical faults.
Product Specification :
| Supply inrush current | < 10 A for 10 ms at 24…250 V DC < 15 A at 110…240 V AC |
|---|---|
| Mounting mode | Fixed |
| Mounting support | Mounting plate |
| Height | 222 mm |
| Width | 176 mm |
| Depth | 121 mm |
