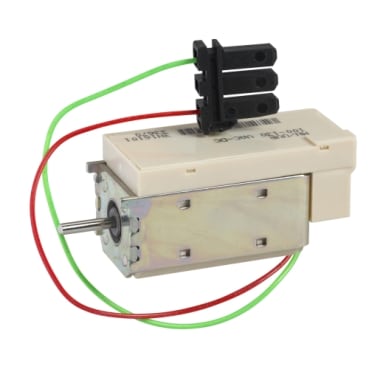

Schneider Electric MX33662 Shunt Trip Release
Schneider Electric MX33662 Shunt Trip Release
Product Description :
- It is a safety feature in electrical circuit breakers that allows for remote tripping or disconnection of power when an external signal is received. This remote control function is especially useful in situations where immediate power disconnection is required, such as emergencies, system faults, or safety protocols.
- The shunt trip mechanism is triggered by an external electrical signal and causes the circuit breaker to open (disconnect), cutting off the flow of electricity.
- A Shunt Trip Release is an accessory device for circuit breakers that allows remote tripping of the breaker through an external signal. When an electrical pulse or control voltage is applied, the shunt trip mechanism activates the breaker’s trip unit, disconnecting the circuit to ensure safety and prevent damage. It is widely used in emergency shutdown systems, fire protection setups, and automated control applications where immediate power disconnection is required.
Product Specification :
| Device short name | MX |
|---|---|
| Product or component type | Voltage release |
| device application | Control |
| Voltage release type | Opening coil Instantaneous voltage release |
| Control type | Standard |
| [Uc] control circuit voltage | 200…250 V AC 50/60 Hz 200…250 V DC |
| Circuit breaker mounting mode | Fixed |
| Range compatibility | ComPact ComPact NS630b…1600 ComPact ComPact NS1600b…3200 |
