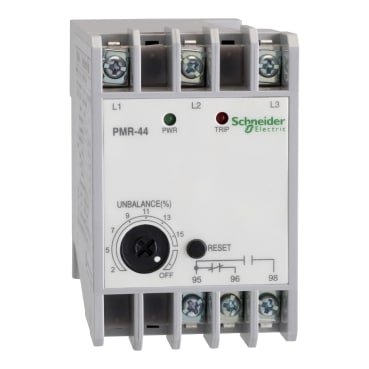

Schneider Electric PMR-440N7 Phase Monitoring Relay
Schneider Electric PMR-440N7 Phase Monitoring Relay
Product Description :
- It is an electrical protection device used to monitor the voltage and phase conditions in a three-phase power system.The relay is connected to all three phases: L1, L2, and L3.Some models may also connect to neutral (N) if required.It continuously monitors the voltage and phase relationships.
- The relay reads the voltage level of each phase.The relay determines the rotation direction of the three phases (e.g., L1 → L2 → L3).If the phase sequence is incorrect, the relay trips, preventing motors from running in reverse.
Product Specification :
| [Us] Rated Input Voltage | 440 V AC |
|---|---|
| Attachment method | 35 mm DIN rail panel |
| Contact type and configuration | 1 C/O PL) |
| ??, ??? ?? | By 4 A gG Fuse |
| [Ue] Rated operating voltage | 480 V AC 50…60 Hz main circuit conforming to IEC 60947-4-1 |
| [Uimp] rated impulse voltage | 6 kV conforming to IEC 60947-4-1 |
| return | Manual reset electrical 0… 1 s electrical |
| Display method | 2 LEDs |
| power consumption per relay | 2 W |
