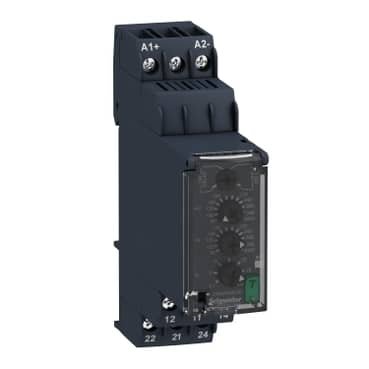

Schneider Electric RM22UB34 Voltage Control Relay
Schneider Electric RM22UB34 Voltage Control Relay
Product Description :
- A voltage control relay is an electrical device used to monitor and control voltage levels in a system.It activates or deactivates a circuit when the voltage goes above or below preset limits.Also called a voltage monitoring relay or over/under voltage relay.
Product Specification :
| Reset time | 1500 ms at maximum voltage |
|---|---|
| Maximum switching voltage | 250 V AC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC |
| Supply voltage limits | 60…280 V AC |
| Power consumption in VA | 5 VA AC |
| Maximum power consumption in W | 2 W DC |
| Immunity to microbreaks | 20 ms |
| Output contacts | 2 C/O |
| nominal output current | 8 A |
| Hysteresis | 5 % fixed of threshold setting |
| delay at power up | 600 ms |
