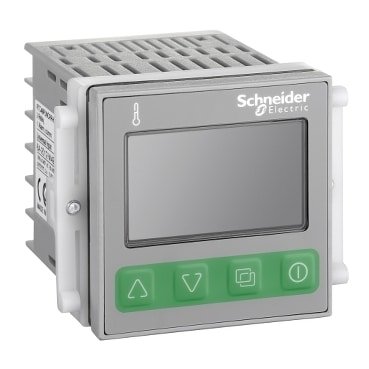

Schneider Electric RTC48PUN1RNLU Temperature Control Relay
Schneider Electric RTC48PUN1RNLU Temperature Control Relay
Product Description :
- It is an electromechanical or electronic device used to monitor temperature and activate or deactivate equipment (such as fans, heaters, alarms, or compressors) when the temperature reaches a set limit. It’s widely used in industrial automation, HVAC, electrical panels, and process control systems.
- A temperature sensor (like a thermistor, RTD, or thermocouple) detects the temperature of the environment or equipment.The sensor sends a signal to the relay’s control unit, which compares it to a preset threshold (setpoint).
Product Specification :
-
[Us] rated supply voltage 24 V AC/DC [Us] rated supply voltage 24 V AC/DC Supply voltage limits 20…28 V Measurement accuracy 0.2 % full scale Sampling duration 250 ms Number of outputs 1 relay output with NO contact for output 1 Output type Relay output at 250 V AC / 3 A on resistive load
Relay output at 250 V AC / 1 A on inductive loadAlarm output 1 C/O Power consumption in VA 8 VA at 250 V AC Function available PID
Auto tuningMarking CE Operating position Any position Display type 11 segments LCD Display digits 5
